Cov ntaub ntawv yooj yim.
Trademark: HUABOND®
Qauv TSIS MUAJ: H-H110

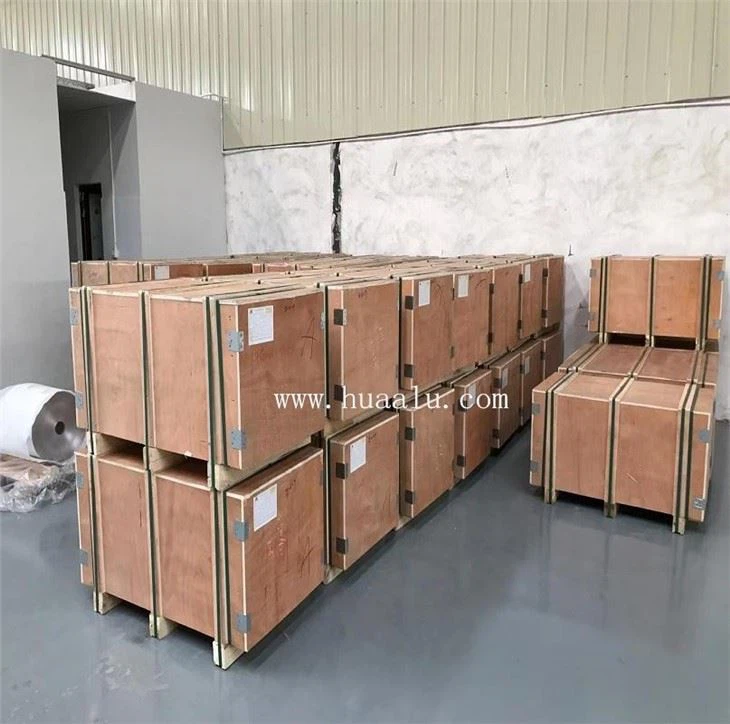

Thauj Pob: Plywood Crate
Specification: Customized
Loj: 1220 * 2440mm, Max. W * L=2000*12000mm
Thickness: 5mm txog 300mm yeem
Adhesive: Epoxy Resin
Hluav taws kub tsis kam: A Qib
Xim: RAL Xim lossis Customized Made
Ntug Txheej Txheem: Ntug kaw lossis ntug qhib
Kev ntxhib los mos: Ntoo veneer, Pob zeb saib, du, tiv thaiv plam
Vaj Huam Sib Luag Zoo: Pav ca, Curved, Kem, Irregular, as Per Drawings
Kev kho deg: PVDF, PE / Polyester, Ntoo, Txhuam, Polished
Keeb kwm: Guangzhou, Suav teb
HS Code: 7616 9990
Dab tsi yog Qhov Zoo ntawm Honeycomb Vaj Huam Sib Luag?
· Ultra-lub teeb nyhav
· Siab nruj, muaj zog cuam tshuam
· Cov hluav taws kub zoo heev (Ua raws li A2 Standard)
· Zoo heev Corrosion Resistance
· Siab cua resistant
· Zoo heev Durability
· Super flatness thiab resistant nto
· Yooj yim rau thauj & nruab
· Recyclable thiab ib puag ncig-phooj ywg
· Cov khoom siv tsawg tsawg
· PVDF los yog Polyester txheej tiav aluminium, anodized Aluminium, stainless hlau los yog lwm yam tshwj xeeb hlau ntsej muag nplooj ntawv yog rau siab tshaj plaws lub zog thiab kev tiv thaiv corrosion zoo li zoo nkauj daim ntaub ntawv.
· Txhuas los yog lwm yam hlau lub ntsej muag nplooj ntawv muaj nyob rau hauv ib tug ntau yam ntawm thicknesses ntawm 0.3mm mus rau 3mm raws li ib tug tsim yuav tsum tau
· Cov vaj huam sib luag tuaj yeem tsim nyob rau hauv cov thicknesses sib txawv thiab xim kom tau raws li cov qauv tsim thiab lub hom phiaj kho kom zoo nkauj.
· Aluminium faced panels yog tshuaj ntxuav: Haum rau pleev xim los yog daim ntawv thov ntawm cov hniav laminates
· txhuam thiab anodized txhuas tiav kuj muaj
· Aluminium honeycomb cell loj yog xaiv tau.
· Kev xaiv dav ntawm cov xim suav nrog RAL xim, xim hlau, xim pob zeb / marble / granite thiab xim ntoo.
Aluminium Honeycomb Vaj Huam Sib Luag tuaj yeem siv rau dab tsi?
· Architectural Building Cladding thiab kho kom zoo nkauj, phab ntsa vaj huam sib luag
· Architectural Rain screen Facades thiab canopies
· Lub teeb tha xim sab hauv vaj tsev vaj huam sib luag
· Lift thiab elevator flooring, phab ntsa & Partitions
· Aerospace, Marine & Thauj Flooring, Phab ntsa & Partitions
· Silk Screen Printing Tables thiab billboards los yog boards coj
· Rooj tog thiab rooj.
· CNC Nqus Bases
· Lub teeb yuag, phab ntsa, qab nthab, ru tsev, thiab lwm yam
· Kev Tsim Vaj Huam Sib Luag Tshwj Xeeb
Peb tau txais daim ntawv pov thawj dab tsi?
HUABOND tau txais daim ntawv pov thawj thoob ntiaj teb lees paub thiab cov ntawv xeem rau txhuas vaj huam sib luag honeycomb hais txog hluav taws kub, suab rwb thaiv tsev, thiab lwm yam, EG:
· ISO 9001: 2008 los ntawm BV
· Cov Ntawv Pov Thawj Tubrog Nkoj (Hloov Rated A2) los ntawm LLOYDS
· BS 476,475 by TUV PSD Singapore
· EN13501-1 los ntawm ITS
· ASTM los ntawm ITS
Common Specifications:
Khoom siv | Aluminium Alloy (3003/5052, thiab lwm yam) |
Qhov Loj (W * L) | 1220 * 2440 / 3000 hli |
Max. Qhov Loj (W * L * T) | 2000 * 12000 * 300 hli |
Tsis tu ncua Thickness | 10/12/15/20/25 hli |
Xaiv Thickness | 5-300 hli |
Kev kho deg tsis tu ncua | PVDF, PE, hmoov txheej, Anodized, thiab lwm yam. |
Perforation | kho tau |
Daim ntawv thov | Phab ntsa cladding (sab nrauv & sab hauv), qab nthab & flooring, cleanroom, partitions, nkoj hull, tsheb, qhov, thiab lwm yam. |
Customerization (MTM) | Yog (xim, qhov chaw ntxhib los mos, loj, zoo, qauv, thiab lwm yam) |
OEM | Muaj |
Cov lus qhia: | |
1.Rau sab hauv phab ntsa: Nto - PE txheej; Thick ntau yam - los ntawm 8mm mus rau 20mm (ntsej muag daim tawv nqaij: 1.0mm; Rov qab daim tawv nqaij: 0.7mm) | |
2.For sab nrauv phab ntsa: Nto - PVDF txheej; Qhov nrov tshaj plaws tuab: 15mm, 18mm, 25mm, 30mm (tig tawv nqaij: 1.0mm; Rov qab daim tawv nqaij: 0.7mm) | |
Cov kab ntau lawm & Muaj peev xwm:
Aluminium honeycomb panels | 500, 000 sqm ib xyoos twg |
Aluminium honeycomb core & corrugated core | 4.5 lab sqm ib xyoos twg |
Pob zeb (marble, granite) & Porcelain honeycomb vaj huam sib luag | 80, 000 sqm ib xyoos twg |
FRP honeycomb vaj huam sib luag | 100, 000 sqm ib xyoos twg |
Pob zeb wool Sandwich vaj huam sib luag | 100, 000 sqm ib xyoos twg |
Khoom aluminium ntawv | 300, 000 sqm ib xyoos twg |
Cov ntaub ntawv qhia txog kev xeem / xeem
Technical Data Of HUABOND Honeycomb Panels | ||
Test qauv thickness: 20mm / 25mm (1.0 ntxiv rau 1.0): | ||
Thickness | 20 hli | 25 hli |
Pem hauv ntej aluminium vaj huam sib luag | 1 00 hli | |
Back aluminium vaj huam sib luag | 1 00 hli | |
Qhov hnyav (kg / m2) | 7.4 | 7.8 |
Mechanical Property ntawm composite vaj huam sib luag thiab vaj huam sib luag | ||
Inertia Lub Sij Hawm I (cm4 / m) | 19.85 | 31.67 |
Modulus W (cm3/m) | 19 | 24 |
Rigidity ntawm Composite vaj huam sib luag EI (KN cm2 / m) | 139000 | 2217000 |
Aluminium profile vaj huam sib luag | AA 5754A (ALMg3) | |
Modulus ntawm Elasticity (N / mm2) | 70000 | |
Tensile Strength ntawm lub vaj huam sib luag (N / mm2) | Rm Ntau dua lossis sib npaug rau 220 | |
0.2 feem pua Yield Stress(N/mm2) | Rp0.2 Ntau dua lossis sib npaug rau 130 | |
Extensibility (EN485-2: 1194) | A50 Ntau dua lossis sib npaug rau 8 | |
Aluminium linear thermal expansion | 2.4mm / m thaum qhov kub sib txawv yog 100ºC | |
Nto kho kom zoo nkauj txheej | PVDF Spray Baking tiav | |
Glossiness (cov ntaub ntawv qub) | 30-40 feem pua | |
Hardness ntawm cwj mem | HB-F | |
Core ntawm Honeycomb | ||
Qhov loj ntawm honeycomb | 1/4 '' (6.3mm) | |
Qhov ntom | Txog 80kg / m3 | |
Compression zog (MILL-STD-401) | 4 N / mm2 | |
Muaj nuj nqi ntawm Acoustics | ||
Cov ntaub ntawv ntawm lub suab nqus As | 0.05 | |
Yam khoom ntawm lub suab rwb thaiv tsev Raws li ISO717-RW | 23 | 25 |
Muaj nuj nqi ntawm cua sov | ||
Cov ntaub ntawv ntawm kev siv cua sov λ * (w / m2k) | 2.25 | 2.7 |
Cov ntaub ntawv ntawm rwb thaiv tsev thermal R (1 / m) (m2k / w) | 0.0089 | 0.0093 |
Cov ntaub ntawv ntawm tshav kub kis U(k) (w/m2k) | 5.59 | 5.575 |
