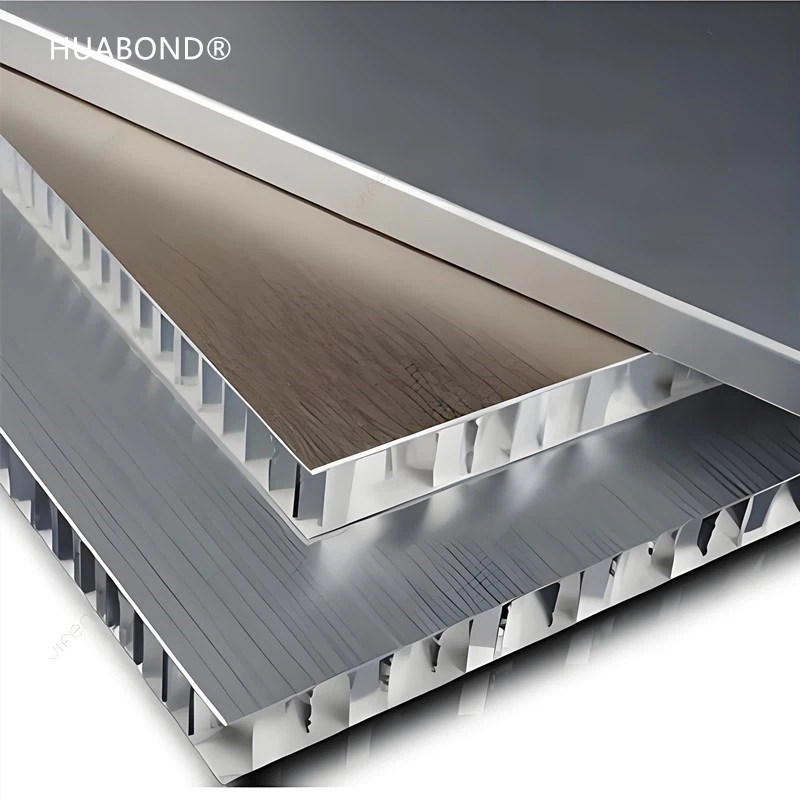

Aluminium Honeycomb Vaj Huam Sib Luag Xaiv: Yuav Ua Li Cas Txog Kev Sib Tw Thickness, Pore Diameter, Thiab Khoom Siv? (nrog rau tus neeg yuav khoom tus kheej- daim ntawv tshuaj xyuas)
Xaiv qhov tsis ncaj ncees lawm thickness raualuminium honeycomb panelssib npaug deformation; xaiv qhov tsis ncaj pore txoj kab uas hla sib npaug delamination; xaiv cov khoom tsis ncaj ncees lawm sib npaug rusting. Tsab ntawv xov xwm no, sau los ntawm tus kws tshaj lij vaj huam sib luag honeycomb nrog 18 xyoo ntawm kev paub, qhia koj yuav ua li cas kom tsis txhob muaj qhov pitfalls uas 90% ntawm cov neeg yuav khoom ua, tsom rau peb qhov tseem ceeb: load-cov kabmob muaj peev xwm, tev lub zog, thiab huab cua tsis kam.
Taw qhia:
"Vim li cas kuv 5 hli tuab honeycomb vaj huam sib luag tsim nthwv dej tom qab tsuas yog peb lub hlis ntawm phab ntsa?"
"Vim li cas lwm tus neeg lub vaj huam sib luag, ua los ntawm tib lub dav hlau- qib aluminium ntawv ci, kaum xyoo dhau los tsis muaj delamination, thaum kuv tawg tom qab tsuas yog rau lub hlis?"
Nyob rau hauv cov txheej txheem ntawm kev yuav khoom ntawm aluminium honeycomb panels, thickness, honeycomb pore txoj kab uas hla, thiab cov khoom siv alloy yog "hlau daim duab peb sab" txiav txim siab cov khoom lifespan thiab kev ua tau zoo. Txawm li cas los xij, kev ua lag luam raug dej nyab nrog cov khoom tsis yog- tus qauv thiab cov khoom qis qis, thiab cov kev qhia tshwj xeeb tau dhau los ua kev lag luam.
Niaj hnub no, peb yuav hla lub fluff thiab mus ncaj nraim mus rau peb yam tseem ceeb: txhua yam khoom, kev sib txuas lus, thiab kev siv ib puag ncig. Peb yuav qhia koj cov kauj ruam -los ntawm - kauj ruam hauv kev xaiv qhov siab tiag tiag -kev ua tau zoo aluminium honeycomb panels.
I. Thickness: Lub Thicker Qhov Zoo? 90% ntawm cov tib neeg to taub qhov yuam kev no
1.1 Tag Nrho Thickness vs. Vaj Huam Sib Luag Thickness (Qhov taw qhia tseem ceeb tshaj plaws)
Ntau tus neeg muag khoom hais tias "15mm thickness," tab sis feem ntau tsuas yog qhia koj qhov siab ntawm honeycomb core, zais lub vaj huam sib luag (cov ntawv txhuas) tuab.
- Zam qhov kev poob siab no: Vaj huam sib luag thickness txiav txim siab lub vaj huam sib luag qhov cuam tshuam.
- Sab hauv partitions/ceilings: 0.5mm - 0.8mm vaj huam sib luag thickness txaus.
- Sab nraum zoov kab hlau rhuav phab ntsa / txoj kev loj fencing: Vaj huam sib luag thickness yuav tsum yog 1.0mm - 1.5mm.
- Flooring/Heavy-load thaj chaw: Tsis txhob yuav panels thinner dua 1.2mm; lawv yuav dhuav thaum taug kev.
1.2 Kev sib raug zoo ntawm Core Layer Qhov siab thiab Span
- Kev ntseeg yuam kev: Kev ntseeg tias 15mm tuab vaj huam sib luag zoo dua li 10mm.
- Qhov tseeb: Cov txheej txheem tseem ceeb ntawm qhov siab yuav tsum sib npaug ntawm keel qhov sib nrug.
- Span Tsawg dua lossis sib npaug li 500mm: 10mm thickness txaus, txuag nyiaj thiab txo qhov hnyav.
- Ntev 500mm - 1000mm: 15mm-20mm thickness yog tsim nyog.
- Ntev> 1000mm: 25mm lossis ntau dua yog pom zoo; txwv tsis pub, "roj lauj kaub hauv qab nyhuv" (vaj huam sib luag nto concavity) yuav tshwm sim.
Xaus: Tsis txhob saib tag nrho cov tuab. Siv cov calipers los ntsuas lub vaj huam sib luag thickness thiab siv qhov yuav tsum tau ncua kom txiav cov tub ntxhais txheej qhov siab.
II. Aperture Dia: 6mm lossis 10mm? Xaiv qhov Tsis Zoo Ua rau Delamination
Sab ntev thiab aperture txoj kab uas hla ntawm lub honeycomb core (feem ntau 6mm, 8mm, thiab 10mm) ncaj qha cuam tshuam rau lub zog tshwj xeeb thiab nplaum.
2.1 Kev sib raug zoo ntawm Aperture Diameter thiab Peel Strength
- Me aperture (4mm-6mm): Ntau qhov pore phab ntsa, loj dua qhov chaw sib cuag, tsis tshua muaj zog tev. Haum rau cov cheeb tsam uas yuav tsum tau rov ua cov kabmob thiab cov cua kub siab (xws li cov ntug dej hiav txwv typhoon).
- Loj aperture (8mm-12mm): Lub cev nyhav dua, tab sis tsawg dua cov ntsiab lus sib txuas hauv ib cheeb tsam. Yog tias cov nplaum nplaum tsis zoo, "honeycomb core cais tawm ntawm lub vaj huam sib luag" yuav tshwm sim.
2.2 Cov lus pom zoo sib xws
- 6mm aperture yog nyiam: Qhov no yog tam sim no qhov kev ntseeg siab tshaj plaws "golden size," muab qhov zoo tshaj plaws tag nrho kev ua tau zoo thiab haum rau 90% ntawm cov haujlwm ua haujlwm.
- Xaiv 10mm lossis loj dua nrog kev ceev faj: Tshwj tsis yog tias koj muaj qhov hnyav hnyav heev thiab muaj peev xwm txaus los yuav ob- cov khoom siv nplaum nplaum, siv cov apertures loj ntawm cov ntawv xov xwm kub hauv tsev muaj kev pheej hmoo siab heev.
Ib lo lus kom tsis txhob muaj qhov pitfall no: Cov neeg muag khoom pom zoo apertures loj yog sim txuag ntawm cov nqi txhuas ntawv nyiaj. Insist ntawm 6mm aperture tshwj tsis yog tias lawv muaj daim ntawv qhia txog kev ntsuas kev ua haujlwm.
III. Cov Khoom Siv: Puas yog Aluminium Alloy 3 Series lossis 5 Series? Lub hauv paus ua rau xeb
Txhuas tuaj yeem "xeb" (oxidation thiab corrosion), tshwj xeeb tshaj yog nyob rau hauv cov av noo lossis acidic / alkaline ib puag ncig.
3.1 Demystifying Aluminium Alloy Qib
- 3003 Aluminium Alloy (Manganese Alloy): Kev tiv thaiv corrosion zoo heev, kev ua haujlwm zoo heev, thiab tus huab tais ntawm tus nqi- ua tau zoo. Haum rau 90% ntawm sab hauv tsev thiab sab nraum zoov kab hlau rhuav phab ntsa.
- 5052 Aluminium Alloy (Magnesium Alloy): Siab hardness thiab tsis tshua muaj zog tiv thaiv rau marine huab cua corrosion. Haum rau cov nkoj, cov nroj tsuag tshuaj, thiab cov tsev nyob ntug hiav txwv.
- Ntshiab Aluminium (1100/1060): mos heev! Tsis tshua muaj tshwm sim rau deformation thaum siv rau honeycomb panels. Zam! Zam! Zam! (Qhov tseem ceeb hais peb zaug).
3.2 Txheej txiav txim siab Lifespan
- Ordinary Polyester Paint: Fades in 2-3 years, don't use it outdoors.
- Fluorocarbon Txheej (PVDF): Tsis ploj mus rau 20 xyoo, yuav tsum muaj - muaj rau sab nraum zoov kab hlau rhuav phab ntsa.
- Ntoo grain heat transfer printing: Nco ntsoov tias yuav tsum muaj plaub-coat daim ntawv thov; Txwv tsis pub, txheej yuav tev nyob rau hauv UV teeb.
Tsis txhob muaj qhov pitfalls: Daim ntawv cog lus yuav tsum tsis tsuas yog hais tias "cov ntawv txhuas", tab sis yuav tsum tau qhia "qib 3003-H24" los yog "qib 5052," thiab qhia lub npe txheej.
IV. Qhov kawg Pitfall Avoidance: 3 Kev Ntsuas thiab Kev Ntsuas Cov Lus Qhia
Tsis ntseeg koj tus neeg muag khoom? Ua peb qhov kev xeem no tom qab tau txais cov qauv:
1. Peel Test: Tear lub honeycomb core ntawm lub vaj huam sib luag siv koj txhais tes los yog pliers. Yog tias cov ntawv ci txhuas lub kua muag tab sis cov nplaum txheej tsis sib cais, cov nplaum zoo yog qhov ua tau; Yog hais tias nws sib cais smoothly, nws qhia inferior adhesive, thiab cov khoom yuav tsum tau rov qab.
2. Vernier Caliper Thickness Ntsuas: Ntsuas tag nrho cov vaj huam sib luag thickness rho tawm cov nominal txhuas phaj thickness. Qhov sib txawv tshaj 0.02mm qhia tias cov xim zaj duab xis yog tuab heev, zais qhov tsis xws luag hauv cov phaj txhuas.
3. Txoj kev ntsuas qhov hnyav: xam qhov ceev. Qhov ib txwm ceev ntawm aluminium honeycomb vaj huam sib luag (nrog rau cov nplaum) yog kwv yees li 120-150 kg / m³ (xws li raws li cov txheej txheem tseem ceeb). Lub teeb dhau qhov ntom qhia tias tsis txaus txhuas ntawv ci tuab lossis qhov pore loj heev.
V. Kev Muag Khoom Tus Kheej -Kev Tshawb Fawb Kev Tshawb Fawb (Screenshot pom zoo)
Hauv kev xaus, xaiv aluminium honeycomb panels tsis yog hais txog leej twg teev cov kev qhia tshwj xeeb tshaj plaws, tab sis txawm tias cov kev qhia tshwj xeeb no phim koj qhov kev ua haujlwm tiag tiag.
Nco ntsoov tus qauv:
1.0mm vaj huam sib luag + 3003 aluminium ntawv nyiaj + 6mm aperture + fluorocarbon txheej=siab- kawg thiab ruaj
0.3 hli vaj huam sib luag + ntshiab txhuas ntawv ci + 10 hli aperture + cov xim zoo tib yam=cov khoom siv pov tseg
HUABOND tau koom nrog kev lag luam aluminium honeycomb vaj huam sib luag rau ntau tshaj 30 xyoo, hais kom siv 5-series / 3-series nkauj xwb aluminium cov ntaub ntawv + aerospace-qib nplaum zaj duab xis. Yog tias koj muaj teeb meem nrog kev xaiv lossis tau txais tus nqi qis tsis tsim nyog, thov xa koj cov duab kos rau peb ntawm tus xov tooj / tiv tauj. Peb yuav muab cov ntawv txheeb xyuas tshuab thiab cov qauv kuaj dawb rau koj.
