Aluminium Honeycomb Vaj Huam Sib Luag
Dab tsi yog aluminium honeycomb vaj huam sib luag?
Aluminium honeycomb vaj huam sib luag yog lub vaj huam sib luag vaj huam sib luag ua los ntawm aluminium alloy lub ntsej muag panels, aluminium alloy rov qab panels, thiab aluminium honeycomb core layers bonded ua ke nrog siab -lub zog adhesives. Nws lub ntsiab kom zoo dua yog nyob rau hauv lub ultra-siab rigidity- rau- hnyav piv uas tshwm sim los ntawm nws cov qauv biomimetic - ntawm tib rigidity, nws qhov hnyav tsuas yog 1/5 rau 1/8 ntawm cov khoom txhuas vaj huam sib luag. Aluminium honeycomb panels yog dav siv nyob rau hauv lub tsev ntaub thaiv phab ntsa, rail transit platforms, aerospace interiors, nkoj partitions, thiab siab -kawg industrial cov khoom plhaub-scenarios uas yuav tsum tau nruj me ntsis rau flatness, hnav, thiab hluav taws kub.
10 FAQs:
1. Cov qauv ntawm aluminium honeycomb vaj huam sib luag yog dab tsi?

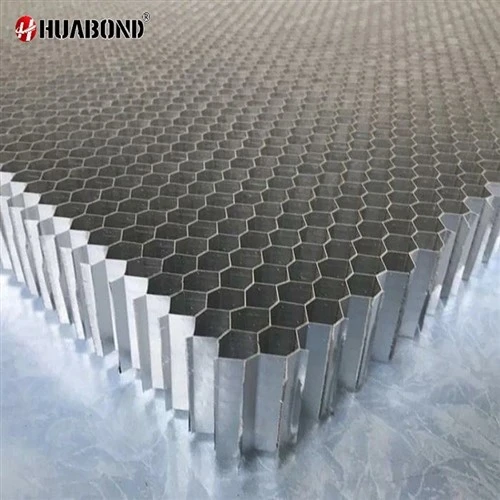

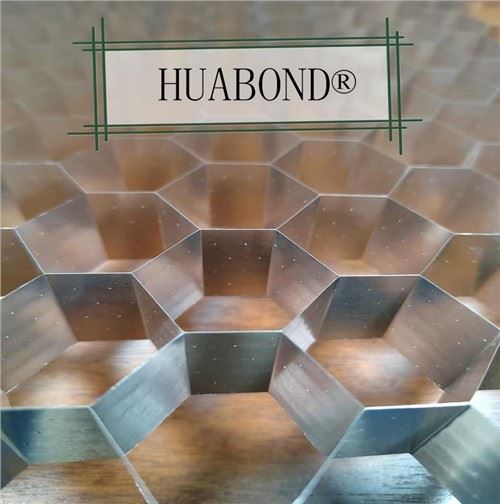

Nws txais yuav "lub ntsej muag vaj huam sib luag + aluminium honeycomb core + back panel" sandwich qauv. Aluminium honeycomb core yog hexagonal thiab honeycomb-zoo li tus, ib qho ntawm cov qauv siv tshuab zoo tshaj plaws hauv qhov xwm txheej, muab lub vaj huam sib luag siab heev bending nruj thiab compressive zog.
2. Dab tsi yog qhov zoo ntawm aluminium honeycomb panels?
Lub teeb yuag heev, ultra-siab flatness (tsis muaj waviness), zoo heev cua siab tsis kam, suab zoo thiab kub rwb thaiv tsev kev ua tau zoo, thiab hluav taws kub tsis kam mus txog A2 tsis- qib combustible. Nws yog qhov kev daws teeb meem zoo tshaj plaws rau ultra-loj- nplai kab hlau rhuav phab ntsa thiab siab- kho kom zoo nkauj kawg.
3. Dab tsi yog qhov tsim nyog thov scenarios rau aluminium honeycomb panels?
Lub tsev ntaub thaiv phab ntsa, sab hauv phab ntsa thiab qab nthab ntawm subway thiab tsheb ciav hlau chaw nres tsheb, tshav dav hlau wayfinding systems, of the elevator car interiors, ship and yacht partitions, cleanroom wall panels, industrial equipment panels, etc.
4. Qhov kev ntsuas hluav taws kub zoo li cas tuaj yeem ua rau aluminium honeycomb panels ua tiav?
Siv cov ntaub nplaum tsis muaj kab mob thiab cov txheej txheem aluminium alloy, aluminium honeycomb panels tuaj yeem ua tiav GB 8624 A2 qib (tsis yog- cov khoom siv hluav taws xob), ua tau raws li qhov xav tau kev tiv thaiv hluav taws nruj ntawm siab - nce vaj tsev thiab cov chaw hauv av hauv kev tsheb ciav hlau.
5. Dab tsi yog qhov kev qhia tshwj xeeb thiab qhov ntev ntawm aluminium honeycomb panels?
Txheem dav yog 1220mm / 1250mm / 1500mm, thiab qhov ntev tshaj plaws tuaj yeem ncav cuag 6000mm. Tag nrho cov vaj huam sib luag thicknesses yog 10mm, 15mm, 20mm, thiab 25mm. Lub vaj huam sib luag thickness feem ntau yog 0.7mm-1.5mm, thiab lub vaj huam sib luag rov qab yog 0.5mm-1.0mm.
6. Yuav ua li cas yog aluminium honeycomb panels ntsia?
Ib qho hanging system feem ntau yog siv. Cov vaj huam sib luag tau ua ntej- nruab nrog aluminium alloy brackets ntawm lub Hoobkas, tso cai rau dai ncaj qha thiab theem ntawm - qhov chaw. Cov nplaum nplaum los yog rov qab bolts tuaj yeem siv rau kev sib txuas. Modular installation yog qhov ua tau zoo thiab tsim nyog rau kev tsim kho lub qhov rais luv luv, xws li hauv kev tsheb ciav hlau.
7. Yuav ua li cas xaiv ntawm aluminium honeycomb panels thiab aluminium composite panels?
Aluminium honeycomb panels raug xaiv rau cov ntawv thov uas xav tau ntxiv - qhov loj me, qhov siab heev, thiab qhov ntsuas hluav taws A2. Aluminium composite panels raug xaiv rau daim ntaub ntawv tiaj tus uas yuav tsum tau khoov cov duab thiab tus nqi rhiab heev. Lawv sib xyaw ua ke thiab feem ntau siv ua ke hauv ntau qhov haujlwm.
8. Puas yog aluminium honeycomb panels kim?
Tus nqi tsev yog siab dua aluminium composite panels, tab sis vim lawv lub teeb yuag tsim (txuag ntawm keel thiab cov nqi tsheb thauj mus los), kev ua haujlwm siab, thiab kev pab cuam ntev, lawv lub neej tag nrho- cov nqi voj voog feem ntau tau txais txiaj ntsig zoo nyob rau hauv high{1}}kawg tej yaam num.
9. Cov kev kho deg dab tsi tuaj yeem siv rau aluminium honeycomb panels?
Peb muab PVDF fluorocarbon roller txheej, FEVE txau, hmoov txheej, anodizing, thiab hlau kos duab kho. Cov xim tuaj yeem hloov kho raws li Pantone xim codes.
10. Lub sij hawm xa tuaj rau aluminium honeycomb panels yog dab tsi?
Tus qauv loj yuav siv li ntawm 15-25 hnub. Qhov ntau thiab tsawg, txheej txheej tshwj xeeb, lossis kev ua haujlwm nyuaj yuav tsum tau 25-35 hnub. Rail Transit tej yaam num feem ntau yuav tsum tau them nyiaj ua ntej rau lub sijhawm tsim khoom.
Kev txuag hluav taws xob, cov khoom siv ntsuab, zoo thermal thiab suab rwb thaiv tsev & suab rwb thaiv tsev, hluav taws tsis kam.
Koj tus kws tshaj lij Aluminium Honeycomb Panel Supplier
Peb lub hom phiaj yog los ua koj tus khub tiag tiag hauv Aluminium Honeycomb Vaj Huam Sib Luag hauv Suav teb. HUNAN HUABOND TECHNOLOGIES CO., LTD., high -tech enterprise tau tsim nyob rau hauv 1994 thiab muab tso rau hauv ntau lawm nyob rau hauv 1996, specializes nyob rau hauv kev tshawb fawb, kev loj hlob thiab zus tau tej cov high - qib tsev cov ntaub ntawv kho kom zoo nkauj. thiab cov qauv kev ua haujlwm. Tus nqi yog qhov sib tw thiab cov khoom lag luam yog qhov zoo- paub tseeb, uas yog qhov kev xaiv zoo rau koj txoj kev koom tes ntev -.
Vim Li Cas Xaiv Peb
Daim ntawv thov
Cov khoom lag luam tau siv dav hauv ntau lub tsev kab hlau rhuav phab ntsa thiab vov tsev, nrog rau ntau yam loj - chaw ntau pob, tsev qiv ntawv, tsev cia puav pheej, tshav dav hlau, siab - chaw nres tsheb ciav hlau ceev thiab lwm yam haujlwm.
Peb lub khw
Exported mus rau kaum ob lub teb chaws xws li russia, lub tebchaws United States, lub tebchaws United Kingdom, India, Algeria, Latvia, thiab lwm yam.
Daim ntawv pov thawj
Lub tuam txhab tau dhau qhov "ISO9001 Quality Management System Certification", "ISO14001 Environmental Management System Certification"; thiab tau txais kev vam meej: "Tuam Tshoj nto moo hom", "Tuam Tshoj Engineering siv cov khoom pom zoo", "National 100 Preferred Brands for Engineering Building Materials", "National Authority Testing Quality Qualified Products" thiab lwm yam kev tsim nyog qhuas.
Peb Cov Khoom
Hunan huabond Technologies Co., Ltd. Yog lub tuam txhab ua haujlwm siab - thev naus laus zis tshwj xeeb hauv kev tshawb fawb thiab kev tsim kho thiab tsim cov khoom siv kho kom zoo nkauj siab - kawg. Nws cov khoom tseem ceeb muaj xws li xim-coated aluminium coils, aluminium-pastic panels, kos npe boards, aluminium honeycomb panels, khoom txhuas vaj huam sib luag, hlau composite panels, thiab lwm yam.
Zoo Anti-corrosion
Peb siv aluminium alloy 3003 uas muaj cov ntsiab lus ntawm mg & mn, nws muaj kev tiv thaiv zoo heev -corrosion khoom & lub neej ntev. Nws yuav tsis xeb yooj yim li coated steel.
Lub Teeb Nyhav
Honeycomb core yog hollow hexagonal qauv, yog li tag nrho cov vaj huam sib luag honeycom yog lub teeb hnyav. Nws yog ntau sib dua li cov khoom txhuas vaj huam sib luag, thiab nws tuaj yeem txo qhov hnyav tag nrho ntawm koj cov haujlwm.
Siab Rigidity
Honeycomb panels yog cov khoom siv siab nruj vim hais tias lub hexagonal honeycomb core muaj zog & ruaj.
Super tiaj tus nto
Honeycomb vaj huam sib luag nto yog tiaj tiaj ntau dua li txhuas cov khoom vaj huam sib luag, txawm tias cov vaj huam sib luag loj, nws yuav tsis muaj cov roj canning nto zoo li txhuas vaj huam sib luag.
Hluav taws kub retardant
Aluminium honeycomb yog hluav taws kub retardant, cais raws li a2 fr.
Rov ua dua
Aluminium honeycomb vaj huam sib luag yog cov khoom ntsuab uas yog cov khoom siv rov ua dua tshiab, nws tuaj yeem sib cais thiab rov ua dua tom qab hloov lossis thaum cov khoom tsis xav tau.
Ib qho yooj yim installation
Honeycomb panels tuaj yeem txiav kom loj thiab tsim raws li tus neeg siv khoom xav tau cov duab lossis kos duab, ua kom yooj yim & siv tau rau cov neeg siv khoom nruab lossis sib dhos.
Daim ntawv thov ntawm Aluminium Honeycomb Vaj Huam Sib Luag
Architectural kho kom zoo nkauj
Aluminium honeycomb panels tuaj yeem siv rau kev siv vaj tse xws li façade cladding, ru tsev, qab nthab, soffit, thiab sab hauv phab ntsa muab faib.
Kev lag luam tsheb thauj mus los
Nws tuaj yeem siv rau kev thauj mus los xws li nkoj lub cev, tsheb thauj khoom lub cev thiab lwm yam.
Cov khoom siv substrate
Aluminium honeycomb panels tuaj yeem siv los ua cov ntaub ntawv substrate los ua lub teeb hnyav & cov ntaub ntawv tsis sib xws, xws li ua cov substrate panels rau pob zeb honeycomb panels, acrylic honeycomb panels thiab lwm yam.
Rooj tog panels
Aluminium honeycomb vaj huam sib luag tuaj yeem siv los ua cov rooj tog zaum xws li chav ua noj, chav pw, rooj, qhov rooj, rau nws qhov zoo tiv thaiv kom ya raws & termite.
Peb kuj muabPVDF coated aluminium coilthiabhluav taws kub ntsuas aluminium composite vaj huam sib luagrau lub tsev cladding tej yaam num.
Product Description
|
Test qauv thickness: 20mm / 25mm ({2}}) |
||
|
Thickness |
20 hli |
25 hli |
|
Pem hauv ntej aluminium vaj huam sib luag |
1.00 hli |
|
|
Back aluminium vaj huam sib luag |
1.00 hli |
|
|
Qhov hnyav (kg / m2) |
7.4 |
7.8 |
|
Mechanical Property ntawm composite vaj huam sib luag thiab vaj huam sib luag |
||
|
Inertia Lub Sij Hawm I (cm4 / m) |
19.85 |
31.67 |
|
Modulus W (cm3/m) |
19 |
24 |
|
Rigidity ntawm Composite vaj huam sib luag EI (KN cm2 / m) |
139000 |
2217000 |
|
Aluminium profile vaj huam sib luag |
AA 5754A (ALMg3) |
|
|
Modulus ntawm Elasticity (N / mm2) |
70000 |
|
|
Tensile Lub zog ntawm lub ntsej muag vaj huam sib luag (N / mm2) |
Rm Ntau dua lossis sib npaug rau 220 |
|
|
0.2% Yield Stress (N/mm2) |
Rp0.2 Ntau dua lossis sib npaug rau 130 |
|
|
Extensibility (EN485-2: 1194) |
A50 Ntau dua lossis sib npaug rau 8 |
|
|
Aluminium linear thermal expansion |
2.4mm / m thaum qhov kub sib txawv yog 100ºC |
|
|
Nto kho kom zoo nkauj txheej |
PVDF Spray Baking tiav |
|
|
Glossiness (cov ntaub ntawv qub) |
30-40% |
|
|
Hardness ntawm cwj mem |
HB-F |
|
|
Core ntawm Honeycomb |
||
|
Qhov loj ntawm honeycomb |
1/4 '' (6.3mm) |
|
|
Qhov ntom |
Txog 80kg / m3 |
|
|
Compression zog (MILL-STD-401) |
4 N / mm2 |
|
|
Fuction ntawm Acoustics |
|
|
|
Cov ntaub ntawv ntawm lub suab nqus As |
0.05 |
|
|
Qhov tseem ceeb ntawm lub suab rwb thaiv tsev raws li ISO717-RW |
23 |
25 |
|
Fuction ntawm cua sov |
||
|
Cov ntaub ntawv ntawm kev siv cua sov λ * (w / m2k) |
2.25 |
2.7 |
|
Cov ntaub ntawv ntawm rwb thaiv tsev thermal R (1 / m) (m2k / w) |
0.0089 |
0.0093 |
|
Cov ntaub ntawv ntawm tshav kub kis U(k) (w/m2k) |
5.59 |
5.575 |
Khoom Specification
|
Khoom siv |
Aluminium Alloy (3003/5052, thiab lwm yam) |
|
Qhov Loj (W * L * T) |
1,220 * 2,440 / 3,000 * 6 hli |
|
Max. Qhov Loj (W * L * T) |
2,000 * 10,000 * 200 hli |
|
Tsis tu ncua Thickness |
10/12/15/20/25 hli |
|
Muaj Thickness |
5-300 hli |
|
Kev kho deg tsis tu ncua |
PVDF, PE, hmoov txheej, Anodized, thiab lwm yam. |
|
Perforation |
Yog (customized) |
|
Daim ntawv thov |
Phab ntsa cladding (sab nrauv & sab hauv), qab nthab & flooring, cleanroom, partitions, nkoj hull, tsheb, qhov, thiab lwm yam. |
|
Customerization (MTM) |
Yog (xim, qhov chaw ntxhib los mos, loj, zoo, qauv, thiab lwm yam) |
|
OEM |
Muaj |
Kev xa khoom
|
Muag units |
Ib yam khoom |
|
Ib pob loj |
1220 X 2440 X 1500 mm |
|
Ib qho hnyav tag nrho |
1000 kg |
Lub Sijhawm Lead
|
Qhov ntau (square meters) |
1 - 1000 |
1001 - 6000 |
> 6000 |
|
Lub sij hawm xa tuaj (hnub) |
7 |
15 |
Yuav tsum sib tham |
Ntim & Shipping
Packing Paub meej:
1.Packing nrog cov ntaub ntawv plywood
2.Packing nrog plywood pallet
3.Packing raws li tus neeg yuav tsum tau muaj
Delivery Details:Feem ntau, 18-22 hnub tom qab paub meej tias kev txiav txim. Thaum kawg raws li lub sijhawm tsim khoom tiag tiag.
FAQ
Raws li ib qho ntawm cov kws tshaj lij aluminium honeycomb vaj huam sib luag manufacturers thiab cov muag khoom nyob rau hauv Suav teb, peb lub tuam txhab yog featured los ntawm cov khoom zoo thiab cov kev pab zoo. Thov so assured mus yuav aluminium honeycomb vaj huam sib luag ntawm tus nqi sib tw los ntawm peb lub hoobkas.
