Txheej txheem cej luam
Cov ntsiab lus ceev
Qhov chaw ntawm Keeb Kwm: Hunan, Suav Hom Lub Npe: Huabond Tus Qauv Zauv: HTB-CC121 Kev siv: Sab nraum zoov Muaj nuj nqi: Anti-Static, Antibacterial, Fireproof, Pwm-pov thawj Kev kho deg: Anodized, Brushed, Foil Decoration, Daim iav, PE Coated, Printing, PVDF Coated Khoom npe: Aluminium Composite Core Vaj Huam Sib Luag (ACCP) Core: Aluminium Wave Core (ACCP) | Hluav taws kub tsis kam: A2 (ACCP) Thickness ntawm tag nrho cov vaj huam sib luag: 3mm / 4mm (ACCP) Thickness ntawm aluminium ntawv: 0-0.7mm (ACCP) Deg teatment Txheej: PVDF / PE / NANO PVDF (kom yooj yim tu) Ntev Ntev:<=6000m (ACCP) Xim: Customized (ACCP) Txheem Loj: 1220mm * 2440mm / / 1250mm * 3200mm (ACCP) |
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom:
20000 Square Meters ib hnub twg
Ntim & Xa
Ntim Cov Lus Qhia
txheem export ntoo rooj plaub
Chaw nres nkoj
Chaw nres nkoj Shanghai / Shenzhen chaw nres nkoj
PVDF aluminium-yas vaj huam sib luag, tiv taus cov kua qaub, alkaline thiab ultraviolet lub teeb, yog xim nrawm rau ntau tshaj 15 xyoo. Nws kuj tseem tiv taus cov av thiab yooj yim los ntxuav thiab tswj. Cov khoom no tsuas yog siv rau sab nrauv phab ntsa kho kom zoo nkauj thiab nthuav tawm huab cua ceev ceev.
PE polyester aluminium-yas vaj huam sib luag yog tus cwj pwm los ntawm cov xim muaj zog zaj duab xis, siab ci, zoo adhesion, thiab tsis kam mus rau dej, abrasion, thiab corrosion thiab yog feem ntau siv rau kho kom zoo nkauj sab hauv.
Daim duab kos duab aluminium-yas vaj huam sib luag nthuav tawm cov xim ci thiab zoo nkauj, kev ua haujlwm nyuaj, cov qauv zoo nkauj, thiab zoo nkauj zoo nkauj. Cov khoom, ua hauj lwm raws li ob qho tib si kho kom zoo nkauj thiab artwork, diversifies sab hauv kho kom zoo nkauj thiab muab prominence rau lub tsev cov khoom kim heev thiab generosity.
Lub emulation board series, qhia ntau yam ntawm cov duab thiab cov xim, zoo ib yam li tej yam ntuj tso kev ntxhib los mos thiab zoo li coj cov neeg siv mus rau qhov zoo kawg nkaus xwm ib zaug ntxiv.

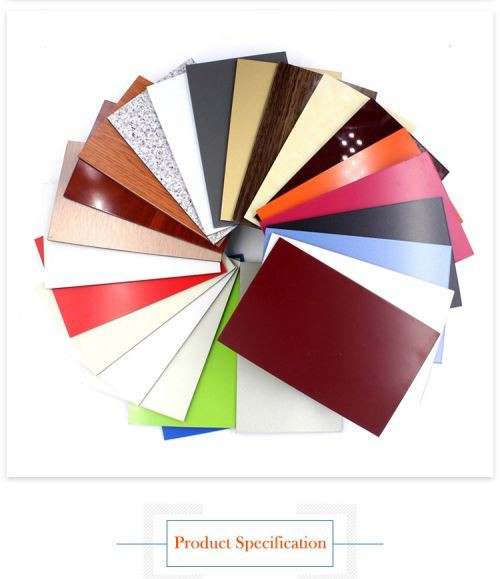

Cov ntawv tshaj tawm yog cov yam ntxwv ntawm qhov me me thiab lub teeb yuag thiab tuaj yeem pleev xim rau xim. Nws yog tsuas yog siv rau zus tau tej cov loj sab nraum zoov advertising boards.
Khoom npe: NANO PVDF Aluminium Composite Vaj Huam Sib Luag
Txheej txheej:
Aluminium Alloy: AA1100series, AA3003series
Aluminium tawv: {{0}}.3mm, 0.40mm, 0.45mm, 0.50mm
Vaj Huam Sib Luag Thickness: 4mm, 5mm, 6mm
Vaj Huam Sib Luag Dav: 1220mm, 1250mm, 1500mm
Vaj Huam Sib Luag Lengdth: mus txog 6000mm, tshwj xeeb loj ntawm kev thov
NANO PVDF Aluminium Composite Vaj Huam Sib Luag yog ib qho av repelling thiab nws tus kheej tu vaj huam sib luag uas muaj ib tug polyethylene core sandwiched ntawm ob aluminium tawv. ntev dua, tuaj yeem yooj yim ntxuav nrog dej ntshiab.
Zoo heev yooj yim tu
Kev ua qias tuaj
Roj kuj
Kev sib txhuam zoo
Muaj zog Acid & Alkali tsis kam
Cov huab cua tsis zoo
Khoom siv hauv paus: siab zog aluminium alloy ntawv
PE core khoom: non-toxic low density polyethylene
Txheej txheej: Nano-PVDF txheej
Back txheej: primer txheej
Aluminium Core Vaj Huam Sib Luag
Cov qauv dawb
Peb muab cov qauv dawb.
Huabond yog lub chaw tsim khoom lag luam. Peb muab tus kheej customization.
Thov xa peb INQUIRY kom paub meej.
Khoom Taw qhia ntawm Aluminium 3D vaj huam sib luag aluminium core vaj huam sib luag
Qhov Loj: 1220 * 2440mm
Thickness: 3 hli / 4mm
Qhov hnyav: 3.4kg / m2 (3mm) 4.5kg / m2 (4mm)
Aluminium Core Composite Vaj Huam Sib Luag ACCP yog cov khoom tshiab los ntawm aluminium honeycomb vaj huam sib luag thiab txhuas vaj huam sib luag. Aluminium core composite vaj huam sib luag yog firmer thiab sib zog dua aluminium honeycomb vaj huam sib luag nrog tus nqi qis. Tsis tas li ntawd, piv nrog aluminium puas vaj huam sib luag, aluminium core composite vaj huam sib luag fireproof lub zog yog zoo dua. Tsis muaj PE tab sis txhuas, qhov no yog vim li cas aluminium core composite vaj huam sib luag yog tag nrho ib puag ncig thiab hluav taws kub. Dab tsi ntxiv, qhov tsos yog ntau yam, tsis hais pob zeb, ntoo lossis iav tuaj yeem ua tiav. Yog li Aluminium core composite vaj huam sib luag tuaj yeem hloov pauv aluminium honeycomb vaj huam sib luag thiab txhuas vaj huam sib luag.
Cov duab ntxaws ntxaws ntawm Aluminium 3D vaj huam sib luag aluminium core vaj huam sib luag
Technical Paub meej ntawm Aluminium 3D vaj huam sib luag aluminium core vaj huam sib luag
Tag nrho Thickness | Nto Aluminium thickness | rov qab aluminium thickness | Dav | Ntev | Kev kho saum npoo |
3 hli / 4mm | {0}}5-1.0mm | {0}}4-1.0mm | 1200 hli | Tsawg dua los yog sib npaug li 6000mm (2440 hli) | PE |
| PVDF | |||||
| Cov nplej | |||||
| Pob zeb | |||||
| Kos | |||||
| Daim iav |
Aluminium Core Vaj Huam Sib Luag piv nrog lwm cov khoom siv
Khoom | 4mm Aluminium Core Vaj Huam Sib Luag | 10 hli Aluminium Honeycomb Pane | 6mm Corrugated vaj huam sib luag | 4mm Aluminium Composite Vaj Huam Sib Luag | 2.5mm Aluminium Ib Vaj Huam Sib Luag |
Nqe | Yooj yim | Siab | Yooj yim | qis | kim |
Qhov hnyav / m2 | 4, 5kg | 6, 6kg | 4.6kg ua | 7 0kg | 6,8kq ua |
Fireproof Degree | A2 | A2 | A2 | B1 | A2 |
Flatness | Zoo tshaj | Zoo tshaj | Zoo dua | Phem | Zoo dua |
Flattening zog | 0.85Mpa | >0.8Mpa | >1.5 Mpa | / | / |
Nias lub zog | 4, 39 Mpa | >0.8Mpa | >0.5Mpa | / | / |
Shear zog | 0.85Mpa | >0.5Mpa | / | 29mpa ua | / |
Khoov zog | 161.9 Mpa | / | >100 Mpa | 131 Mpa | / |
Roller tev lub zog | 102.7 N.mm/mm | 50 N.mm/mm | 40 N.mm/mm | / |
Ntim nthuav dav
Khoom thiab xa khoom ntawm Aluminium 3D vaj huam sib luag aluminium core vaj huam sib luag
Product details
Hais txog cov khoom
1. Muaj cov hluav taws kub-retardant siab tshaj plaws qib A2 FR.
2. Tshaj li aluminium honeycomb panels ntau pheej yig dua.
3. Tshaj li aluminium khoom vaj huam sib luag sib zog thiab flatter.
4. Tshaj li aluminium corrugated panels ntau ruaj.
5. Tshaj li aluminium composite vaj huam sib luag toxic dawb thiab hluav taws pov thawj.
Chav Kawm A2 FR Aluminium Composite Vaj Huam Sib Luag Technical Parameters | ||||
1 | NPE | Tshiab hluav taws-retardant ntuj inorganic ntxhia khoom | ||
2 | Cov ntsiab lus tseem ceeb | Tshiab hluav taws-retardant ntuj inorganic ntxhia khoom | Aluminium core | |
4 | Core thickness | 2-5 hli | ||
5 | Core dav | 900-2000 hli | ||
6 | Calorific nqi (MJ / kg) | Tsawg dua los yog sib npaug 3 | 2.3-2.4 | Hla |
7 | Cov pa luam yeeb ntau lawm hauv 600s | Tsawg dua los yog sib npaug li 50 | Tsawg dua lossis sib npaug li 48 | S1 |
8 | Flaming droplets | Tsis muaj flaming droplets | hla | d 0 |
9 | Toxicity. qib | Chav Kawm ZA1 | hla | t 0 |
10 | Peel zog | Ntau dua lossis sib npaug rau 7N / mm | ASTM D 903 Cov khoom siv raw khoom | hla |
Kev ua haujlwm kub | 5.79Btu/hr.ft 2.0 F | ASTM C518, ASTM C518 | hla | |
Tensile zog | Ntau dua lossis sib npaug li 40Mpa | ASTM E8 | hla | |
Yield zog | Ntau dua lossis sib npaug li 30Mpa | ASTM E8 | hla | |
Elongation | Ntau dua lossis sib npaug li 3 feem pua | ASTM E8 | hla | |
DTUL | 211 degree | ASTM D 648, ASTM D 648 | hla | |
Tensile zog | Ntau dua lossis sib npaug rau 130N / MM2 | EN 485-2/ASTM E8 | hla | |
Yield zog | Ntau dua lossis sib npaug rau 90N / MM2 | EN 485-2/ASTM E8 | hla | |
Elongation | Ntau dua lossis sib npaug li 5 feem pua | EN 485-2/ASTM E8 | hla | |
Lim txwv oxygen index (LOI) | Ntau dua lossis sib npaug li 32 | Ib: 13501 | hla | |
Toxicity | Tsawg dua los yog sib npaug li 1 | NCD-1409 | hla | |
Thaum tshav kub kub tso tawm tus nqi (HRR) | R1 (HL3) 50KW/M2 | ISO 5660-1 | hla | |
Tolerance ntau yam ntawm vaj huam sib luag specification | Thickness: ± 0.20mm | Dav: ntxiv rau 2.0mm | Dav: ntxiv rau 2.0mm | |
Dhau tus qauv ntawm EN13501-1: 2007 ntxiv rau Al: 2009 los ntawm Intertek, kuj dhau qhov kev xeem ntawm SGS, BV, thiab lwm yam. | ||||
Kev sib piv ntawm ACCP thiab cov khoom siv hlau thaiv phab ntsa uas twb muaj lawm
Lub npe | Nyhav/㎡ | Hluav taws | Flatness | Tensile | Flatwise | Khoov | Peel |
ACCP-4 hli | 3.6kg ua | Qib-AQ2 | Zoo heev | 0.85Mpa | 1.97 Mpa | 186.5 | 187.9 N. |
Aluminium honeycomb | 6, 6kg | Zoo heev | Zoo heev | >0.8Mpa | 0.8Mpa | Tsis muaj | 50N. |
Aluminium corrugated | 4.6kg ua | Zoo heev | Zoo | >1.5 Mpa | >1.5 Mpa | >100 Mpa | 40N. |
Aluminium Composite | 6,8kq ua | B1&A2 | pluag | Tsis muaj | Tsis muaj | 131 Mpa | Tsis muaj |
Aluminium khoom | 6,8kq ua | Zoo heev | pluag | Zoo heev | Tsis muaj |
Puas yog phab ntsa tag tsis-combustible? Nws puas yuav ua tau ntev (tsis muaj cladding) raws li lub tsev BCA raws phab ntsa sab nrauv?
ACCP-qhov no txhais tau hais tias cov cladding yog suav hais tias yog ib qho "txuas" thiab koj cov aluminium clading nrog "FR", "PLUS", lossis "A2" qib core yog ntau tshaj qhov yuav tsum tau ua raws!
ACCP yog dab tsi?
Nrog rau kev tsim kho tshiab ntawm cov thev naus laus zis thev naus laus zis, HUABOND® A2 tau tsim A2 ntxiv rau cov khoom siv uas tsis yog-combustible aluminium sandwich vaj huam sib luag rau cov kev cai nruj ntawm cov hluav taws kub retardancy cov cai hauv cov khoom lag luam.
Aluminium Core Composite Vaj Huam Sib Luag ACCP yog ib qho kev txhim kho vaj huam sib luag honeycomb uas tsis cuam tshuam tus nqi kim ntawm aluminium honeycomb vaj huam sib luag tab sis ntau sib dua thiab slimmer dua tom kawg. Nws yog tsim los ntawm txhuas, 100 feem pua ntawm ib puag ncig tus phooj ywg thiab A2 Qib hluav taws resistant. Nws muaj cov yam ntxwv ntawm kev yooj yim fabrication zoo li aluminium composite vaj huam sib luag. Tsis tas li ntawd, qhov kev nthuav qhia saum npoo zoo meej tuaj yeem pom zoo li lub pob zeb zoo li, zoo li ntoo lossis txhuam hniav.
Cov ntaub ntawv lub cev
Piv nrog rau cov hluav taws kub-pov thawj aluminium sandwich vaj huam sib luag, HUABOND® A2® A2 ntxiv yog tib yam tab sis cov thev naus laus zis ntawm cov tub ntxhais, uas yog tsim los ntawm 100 feem pua ntawm cov lattice aluminium qauv es tsis yog ntxhia core.
Cov qauv no ua kom lub vaj huam sib luag tsis muaj hluav taws xob thiab ua rau nws txhim khu kev qha thiab nrov nyob rau hauv txhua daim ntawv thov façade, tshwj xeeb tshaj yog nyob rau hauv UK (BS 476-6 tus qauv) thiab Australia (AS 1530.1 tus qauv) uas muaj cov kev xav tau siab dua thiab xav tau ntawm hluav taws kub retardancy.
Superior feature
1. Lub teeb yuag, zoo rigidity, siab zog thiab kev nyab xeeb
Aluminium honeycomb vaj huam sib luag hnyav tsuas yog 1/70 ntawm qhov ntawd rau cib thiab 1/3 ntawm qhov ntawd rau stainless hlau.
2. Super Flatness thiab Rigidity
Cov qauv hexagonal tshwj xeeb ntawm aluminium honeycomb vaj huam sib luag yog tsim los ntawm ntau lub hlwb hexagonal tuab thiab cov hlwb no zoo ib yam li ntau cov duab kuv, uas feem ntau siv lub siab ntawm lub vaj huam sib luag nto. Cov cuab yeej lees paub lub siab compression lub zog thiab super flatness hla ib cheeb tsam loj.
3. Cov khoom tiv thaiv hluav taws
Kev ntsuam xyuas los ntawm National Research Center of Testing Techniques For Building Materials, cov khoom ntawm Aluminium Honey comb Composite Panels ua tau raws li qhov yuav tsum tau ua ntawm cov khoom tsis yog nplaim taws. Raws li GB-8624-1997 Standard, aluminium honeycomb panels fireproofing qib yog GB-8624-B1 Qib.
4. Suab rwb thaiv tsev, rwb thaiv tsev kub, txuag hluav taws xob
Nyob nruab nrab ntawm ob daim tawv nqaij tau muab faib ua ntau lub hlwb kaw thiab ywj siab, uas yog qhov loj heev txwv tsis pub kis ntawm lub suab yoj thiab cua sov.
5. Moisture kuj, Corrosion Resistant
Aluminium honeycomb vaj huam sib luag saum npoo ntawm daim tawv nqaij yog tsim los ntawm cov txheej txheem txheej txheej, yog li los tiv thaiv anodizing, xim ruaj khov thiab tsis mus pwm thiab deforming. Raws li kev ntsuam xyuas, lub vaj huam sib luag aluminium honeycomb tseem nyob tom qab immersed nyob rau hauv 2 feem pua HCL tov los yog nyob rau hauv saturated Ca (OH) 2 tshuaj rau 24 teev.
6. Ib puag ncig phooj ywg
Qhov zoo tshaj plaws aluminium ib qho khoom vaj huam sib luag rau qab nthab tuaj yeem rov ua dua tshiab uas txawv nrog lwm cov khoom siv. Thiab aluminium honeycomb panels tsis tawm cov pa phem thiab yooj yim los ntxuav thiab kuj yooj yim recyclable.
Aluminium ntsej muag: 3003 H24 Aluminium Chev
Vaj huam sib luag core: Aluminium yoj core
Tag nrho Thickness | Sab saum toj Alu Skin Thickness | Hauv qab Alu Skin Thickness | Dav | Ntev | Nto Ua kom tiav |
4mm ib | {0}}5-1.0mm | {0}}4-1.0mm | 1250 hli (pom zoo) | Tsawg dua lossis sib npaug li 6000mm; 24 40mm (pom zoo) | PE |
| PVDF | |||||
| * 1500 hli | Ntoo | ||||
| Pob zeb | |||||
| NANO | |||||
| * 1220 hli | SPECTRA | ||||
| NYIAJ |
Yam tsawg kawg nkaus Order: 800m2 / dav / xim rau tus qauv dav.
Yam tsawg kawg nkaus Order: 1500m2 / dav / xim rau customized dav. Customized dav yog cim nrog "*"
