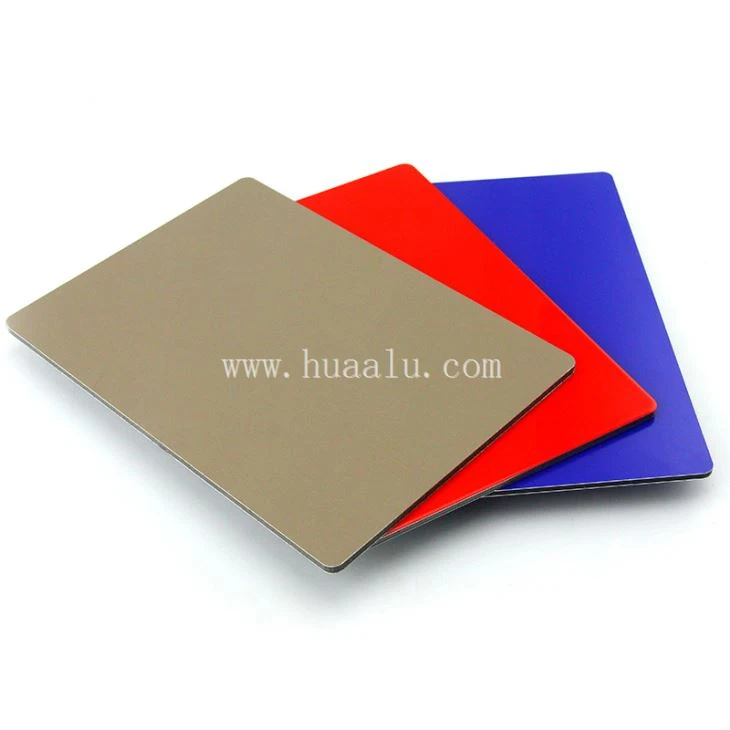

Alucobond cladding nqe / aluminium composite board / composite hlau vaj huam sib luag
Txheej txheem cej luam
Cov ntsiab lus ceev
| Loj: 1220mm * 2440mm Qhov chaw ntawm Keeb Kwm: Hunan, Suav Hom Lub Npe: HUABOND® Tus Qauv Zauv: H-A037 Siv: Sab nraum zoov, Sab hauv / Sab nrauv Muaj nuj nqi: Anti-Static, Antibacterial, Fireproof, Pwm-pov thawj Kev kho deg: Anodized, Brushed, Foil Decoration, Daim iav, PE Coated, Printing, PVDF Coated Standard loj: 1220 * 2440mm Daim Ntawv Thov: Kho kom zoo nkauj | Khoom npe: Phab ntsa cladding 4 hli coj mus muag Sab nrauv PVDF Aluminium Composite Vaj Huam Sib Luag Aluminium ntawv thickness: {{0}}.15mm, 0.21mm, 0.30mm, 0.40mm, 0.50mm Vaj huam sib luag thickness: 2mm / 3mm / 4mm / 5mm / 6mm Core: Rov ua dua PE Core / Fireproof PE Core / Unbreakable PE Core Txheej: PE / PVDF / NANO / Anti-scratch Xim: Khoom / Ntoo / Txhuam / High gloss / Daim iav / Marble Daim ntawv pov thawj: ISO9001 ISO14001 OHSAS18001 |
Ntim & Xa
Kev Muag Khoom: Ntau yam ntawm
Pob loj ib pob: 1220X2440X12 cm
Qhov hnyav tag nrho ib pawg: 5000.0 kg
Ntim Hom: Hauv ntoo pallet lossis hauv ntau, 1200 nplooj / 20ft
Lub Sijhawm Lead:
Quantity (Square Meter) | 1 - 1800 | >1800 |
Est. Sijhawm (hnub) | 15 | Yuav tsum sib tham |
Khoom npe | Alucobond |
Aluminium tawv thickness | 0.1mm -0.50mm |
Tag nrho cov vaj huam sib luag thickness | 2 hli -6mm |
Dav | 1220mm (tsis tu ncua), 1250mm, 1300mm, 1500mm, 1550mm, 1575mm, 2000mm (siab tshaj) |
Ntev | Txog li 5800mm |
Txheem loj | 1220mm (Dav) × 2440mm (Length) |
Muaj Xim | tag nrho cov xim ntawm txhua daim npav xim tshaj lij. |
Cov khoom siv tseem ceeb | Unbroken (zoo) thiab tawg core (ib txwm) |
Kev kho saum npoo | PVDF txheej |
Daim ntawv thov | 1) Kev tsim kho sab nrauv kab hlau rhuav phab ntsa, Phab ntsa vaj huam sib luag yog dav siv hauv kev nthuav qhia, khw muag khoom, chaw ua haujlwm, tsev txhab nyiaj, tsev so, tsev noj mov thiab chav tsev; |
Paub meej ntxiv
Lub sijhawm them nyiaj | TT, LC thaum pom |
Lub sijhawm ua haujlwm | 18-22 hnub |
Kev Tswj Xyuas Zoo | ISO9001: 2000 |
Cov qauv zoo | GB/T 17748-2008 |
Muaj peev xwm tsim tau | 400000 sqm / hli |
Kev pabcuam ntxiv | OEM, kuaj dawb, dawb xim daim ntawv ua, 18-22hnub xa khoom sai, zoo |
Vaj Huam Sib Luag Dav | 1220mm, 1250mm, 1500mm, 1550mm, 2000mm (siab tshaj) |
Vaj Huam Sib Luag Ntev | Txog li 5800mm |
Txheem Loj | 1220 × 2440mm, Customized Txais |
Vaj Huam Sib Luag Thickness | 2 hli, 3mm, 4mm, 5mm, 6mm |
Aluminium Thickness | {0}}.05mm txog 0.50mm |
Aluminium Alloy | AA1100, AA3003, AA5005 ... |
Txheej | PE txheej, PVDF txheej, NANO |
PE Core | Recycle PE Core, Fireproof PE Core, Unbreakable PE Core |
Xim | Hlau, Khoom, Glossy, Pearl, Txhuam, Daim iav, Granite, Ntoo |
Lub sij hawm xa tuaj | Hauv 18 hnub tom qab tau txais qhov tso nyiaj |
MOQ | 600 m² os |
Cov nqe lus them nqi | T/T,L/C |
Ntau Cov Neeg Siv Khoom | OEM, Cov Qauv Dawb, Xim Xim |
Product Description
1) Sab pem hauv ntej: Aluminium alloy ntawv coated nrog fluoro-carbon resin (PVDF) los yog polyester resin (PE) roasting painting
2) Cov khoom siv tseem ceeb: Nontoxic polyethylene, PE, FR, LDPE
3) Sab nraub qaum: Aluminium alloy ntawv coated nrog polyester resin painting (PE)
NTA:
1) Torsion zog
Kev tiv thaiv siab rau siab thiab quab yuam; Kev hloov pauv siab; Tsis muaj kev puas tsuaj rau xim txheej thaum nkhaus; Resistant corrosion txawm los ntawm cov xuab zeb cua daj cua dub;
2) Kev ua haujlwm yooj yim & kev teeb tsa
Yooj yim rau txheej txheem vim nws lub teeb yuag; Superior constructibility ua kom yooj yim txiav, npaj ntug, khoov thiab daim ntawv nrog cov cuab yeej yooj yim;
3) Thermal Resistance
HUABOND ACP's muaj cov khoom siv hluav taws xob uas tiv thaiv tshav kub kom nkag mus rau cov qauv, uas txhais tau tias txuag hluav taws xob;
4) Hluav taws kub tsis kam
PE yas core phaj yog saws raws li cov nplaim hluav taws kub nyhiab hauv nruab nrab ntawm cov txheej txheem nyuaj-combustible aluminium; Fireproof muaj peev xwm siab tshaj B1 tus qauv;
5) Huab cua tsis kam
PVDF txheej (KYNAR-500) cov ntaub ntawv muab huab cua zoo. Qhov saum npoo yuav tsis raug puas tsuaj raws li kev nyab xeeb; Xim yuav kav ntev dua;
6) Txawm lub tsho tiv no & Ntau yam xim
HUABOND ACP siv cov cuab yeej ua yeeb yaj kiab zoo tshaj plaws, ua rau kev sib koom ua ke ntawm cov xim thiab vaj huam sib luag muaj zog thiab tsis sib xws; Ntau hom xim tuaj yeem ua tiav koj cov kev xav tau sib txawv;
7) Kev tiv thaiv siab
Lub tswv yim sib xyaw ua ke ntawm viscoelastic core fused nrog cov khoom siv ruaj khov ua rau muaj kev cuam tshuam siab thiab tawg ua haujlwm; HUABOND ACP muaj zog thiab nruj;
8) Peel zog
Advanced technology yog siv rau hauv HUABOND ACP's uas txhim kho qhov tseem ceeb, tev lub zog, mus rau qhov zoo heev; Planeness ntawm vaj huam sib luag tau zoo heev;
9) Suab Resistance
Qhov tshwj xeeb uas tsis yog-combustible polyethylene core ntawm HUABOND ACP's muab lub suab txo cov khoom zoo dua li lwm cov ntaub ntawv xws li ntoo thiab hlau;
10) Yooj yim rau tu
HUABOND ACP's txaus siab rau qhov zoo ntawm kev tu tus kheej; Cov tshuaj ntxuav tes tsis huv thiab dej txaus kom huv si.
SPECIFICATIONS:
Dav dav | 1220mm, 1250mm, 1500mm, 1570mm, 2000mm ... |
Vaj Huam Sib Luag Thickness | 2 hli, 3mm, 4mm, 5mm, 6mm |
Aluminium Alloy | AA1100, AA3003, AA5005 |
Aluminium Thickness | 0.08 hli - 0.50 hli |
Txheej | PE / PVDF / NANO / Anti-scratch / Zeb |
PE Core | Recycle / Fireproof / Unbreakable PE Core |
Xim | Khoom; Hlau; Marble; Ntoo; Txhuam; Glossy thiab lwm yam xim |
cwj mem hardness | 2H |
Toughness ntawm txheej | 2T |
Elongation | 5 feem pua |
Tensile zog | 130 Mpa |
Temp Resistance | -50 degree rau ntxiv 90 degree |
Daim ntawv thov
1. Kev thov sab nrauv
Phab ntsa Cladding, Facades, Roofs thiab Canopies, Tunnels, Kem npog los yog kho dua tshiab
2. Daim ntawv thov sab hauv
Phab ntsa Cladding, Qab nthab, chav dej, chav ua noj thiab balconies
3. Kev tshaj tawm thiab kev ua lag luam thov
Zaub platforms, Signboards, Fascia thiab khw fronts thiab lwm yam.
Peb qhov zoo:
1. Kev xa khoom sai
2. Tus nqi sib tw
3. Ntau xyoo kev ua lag luam
4. Ntau xyoo kev ua yeeb yam
5. Pab pawg kws tshaj lij tsim kev pabcuam
6. Muab ib qho kev daws teeb meem kev pabcuam
7. Kev koom tes nrog cov lag luam nto moo
8. Muab ntawv pov thawj, zoo guaranteed
9. Muab kev pabcuam tus kheej.
FAQ
Q: Koj puas muab kev pabcuam OEM?
A: Yog lawm, peb muab kev pabcuam OEM. Peb tuaj yeem tsim koj cov khoom nrog koj tus kheej lub logo lossis hom npe. Logo thiab tsim yuav tsum tau muab. Peb kuj tuaj yeem ua xim txuam raws li koj cov qauv.
Q: Koj tuaj yeem ua qhov ntsuas hluav taws kub li cas?
A: Peb muaj 1 kab A2 hluav taws kub-rated ntau lawm kab thiab 3 kab B1 hluav taws kub-rated ntau lawm kab.
Q: Dab tsi max dav ACP koj tuaj yeem tsim tau?
A: Peb muaj 2 kab imported Japanese dav ACP ntau lawm, Max dav tuaj yeem ncav cuag 2 meter.
Q: Koj cov zis ACP txhua hnub yog dab tsi?
A: Peb muaj 4 ACP cov kab ntau lawm .Production muaj peev xwm 20000 txhua hnub. Peb muaj kev ruaj ntseg zoo thiab xa khoom raws sij hawm.
Q: Koj puas muaj ntawv pov thawj?
A: Yog. Peb muab peb cov khoom zoo nyob rau hauv thawj qhov chaw. Peb lub Hoobkas tau dhau ISO9001: 2000 / ISO14001: 2004 / IOHSAS18001: 2007 / CE / SGS / A2 FR daim ntawv pov thawj.
Q: Koj lub sijhawm them nyiaj yog dab tsi?
A: T / T 30% tso nyiaj ua ntej; qhov nyiaj tshuav them tawm tsam B / L ua ntej cov khoom tuaj txog ntawm qhov chaw kawg.
Q: Yuav ua li cas txog koj lub sijhawm khoom xa tuaj?
A: Feem ntau, nws yuav siv sijhawm 18-22 hnub tom qab tau txais koj cov nyiaj them ua ntej. Lub sijhawm xa khoom tshwj xeeb nyob ntawm cov khoom thiab qhov ntau ntawm koj qhov kev txiav txim.
Q: Koj puas tuaj yeem tsim raws li cov qauv?
A: Yog, peb tuaj yeem tsim los ntawm koj cov qauv lossis cov duab kos duab. Peb tuaj yeem tsim cov pwm thiab cov khoom siv.
Q: Koj puas kuaj tag nrho koj cov khoom ua ntej xa khoom?
A: Yog, peb muaj 100 feem pua kev xeem ua ntej xa khoom.
Q: Koj ua li cas rau peb lub lag luam mus ntev thiab kev sib raug zoo?
A: 1. Peb khaws cov khoom zoo thiab cov nqi sib tw kom ntseeg tau tias peb cov neeg siv khoom tau txais txiaj ntsig;
2. Peb hwm txhua tus neeg siv khoom raws li peb tus phooj ywg thiab peb ua siab dawb ua lag luam thiab ua phooj ywg nrog lawv, txawm lawv tuaj qhov twg los.
