Cov ntaub ntawv tseem ceeb.:
Trademark: HUABOND®
Qauv TSIS MUAJ: H-H113
Specification: 1220 * 2440mm
Xim: RAL Xim, Ntoo / Pob zeb Texture
Kev kho deg: PE / PVDF / Mill tiav / Anodized
Adhesive: Epoxy
Ntug quav: kaw / Unsealed
Puab: Flat, Curving, Carved, thiab lwm yam.
Advantage: Lub teeb yuag / siab zog / Fireproof / Anacostic
MOQ: 200 M2
Tshwj xeeb Specification: tuaj yeem kho
Thauj Pob: Tiv Thaiv Zaj Duab Xis thiab Txheem Export Plywood Crate
Keeb kwm: Hunan, Suav teb
HS Code: 7616 9990
Product Description

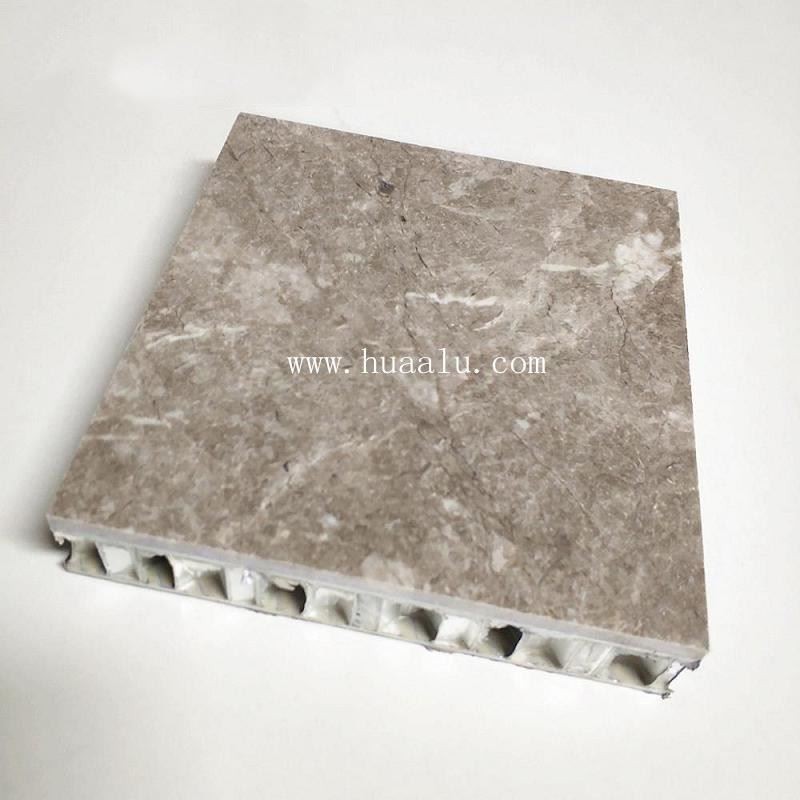

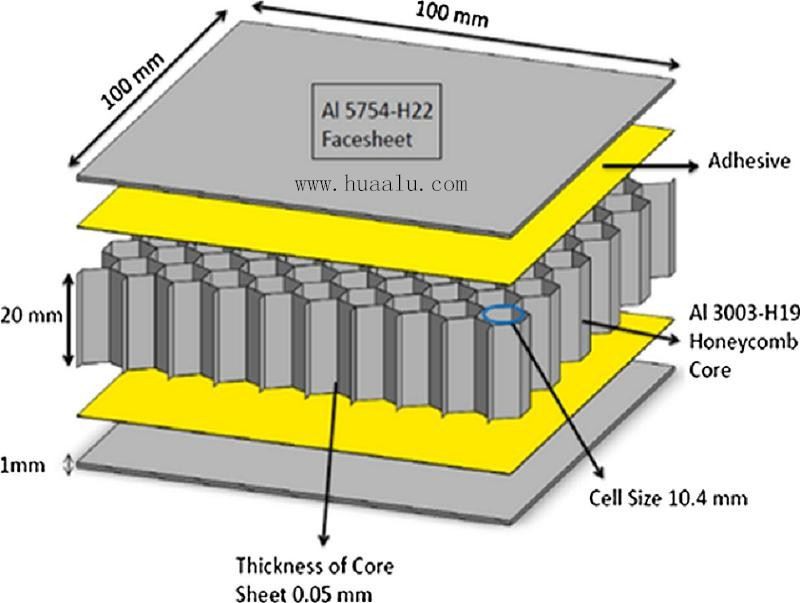

Aluminium honeycomb vaj huam sib luag yog tsim los ntawm aluminium ntawv ntxiv rau aluminium honeycomb core ntxiv rau aluminium honeycomb ntawv

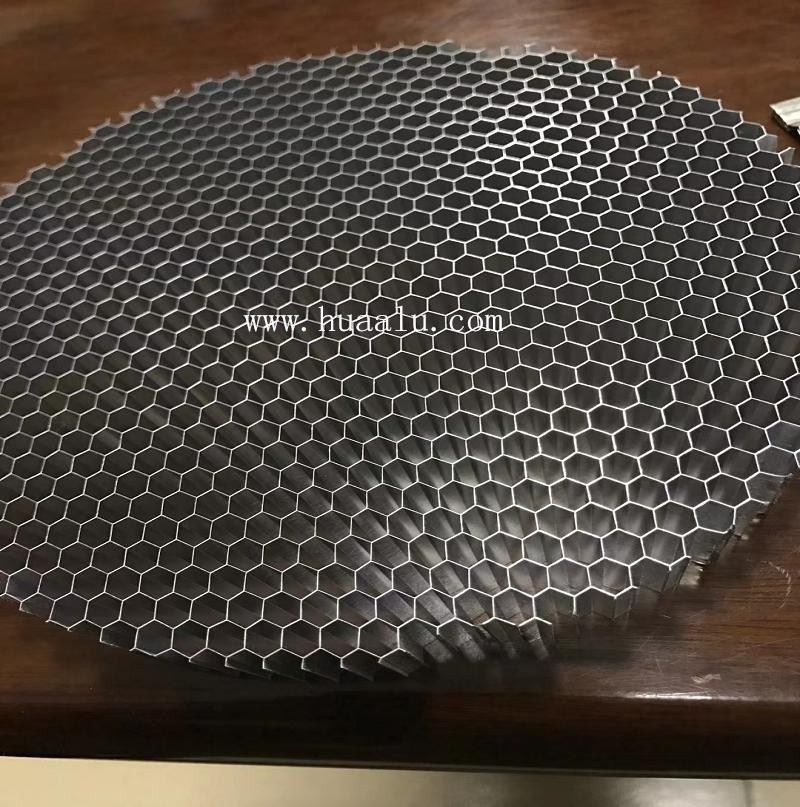

Aluminium honeycomb core yog tsim los ntawm ntau txheej aluminium ntawv ci khoom thiab muaj nyob rau hauv ntau qhov sib txawv ntawm cov xov tooj ntawm tes nrog cov kev teeb tsa ntawm tes tshwj xeeb uas ua rau lub vaj huam sib luag tsis muaj deformation ntawm phab ntsa ntawm tes los yog poob ntawm cov khoom siv nrog cov thickness.
Honeycomb core nto yog kho rau corrosion kuj rau lub hom phiaj durability.
Tuam txhab Profile
Huabond yog ib tug kws tshaj lij nyob rau hauv Suav teb aluminium honeycomb vaj huam sib luag series khoom: Kab hlau rhuav phab ntsa aluminium honeycomb vaj huam sib luag, ultra-thin pob zeb honeycomb vaj huam sib luag, corrugated vaj huam sib luag, enamel honeycomb vaj huam sib luag thiab ib qho txhuas vaj huam sib luag series khoom tsim, ntau lawm, muag khoom ntawm Hunan tuam txhab, tuam txhab npog thaj tsam ntawm 25000 square meter, kev tsim kho thaj tsam ntawm 20000 square meter.
Peb yog thawj honeycomb vaj huam sib luag manufacturers, nplua nuj kev ntawm zus tau tej cov honeycomb panels, tus tswv ntawm American Gurit CNC automatic spraying tshuab ntau lawm kab khoom. Thiab muaj ib txheej ntawm 2 meters dav tsis siv neeg nruam tshav kub sib xyaw cov kab ntau lawm, ntau yam kev ua haujlwm tshwj xeeb zoo li thermal composite ntau lawm kab, aluminium honeycomb core ntau lawm cov khoom. Cov khoom siv ntau lawm ua rau lub tuam txhab dhau los ua tus thawj coj ntawm kev lag luam aluminium honeycomb board, tsim thawj chav kawm zoo, muaj peev xwm ntawm 1000-3500 txhua hnub. Lub tuam txhab cov khoom tau txais txiaj ntsig: Honorary title tau muab los ntawm Tuam Tshoj Cov Khoom Siv Hluav Taws Xob Circulation Association tau txais txiaj ntsig "creditable zoo ntawm kev tsim kho qhov project thiab txhawb kev siv daim ntawv pov thawj khoom tshiab", Ministry ntawm kev tsim kho kev tshawb fawb thiab thev naus laus zis cov ntaub ntawv tshawb fawb, "cov ntaub ntawv tsim vaj tsev scientific. thiab technological achievements popularization thiab daim ntawv thov ntawm peb tes num (khoom) daim ntawv pov thawj, Tuam Tshoj lub tsev ntsia hlau tsev kho kom zoo nkauj Association Committee muab ib tug "taag scientific thiab technological kev loj hlob, daim ntawv pov thawj ntawm ntau lawm puag thiab Tuam Tshoj Zoo ntawm kev pab cuam zoo tshaj. Lub tuam txhab tau dhau GB / T19001-2000idt, S09001: 2000 daim ntawv pov thawj kev tswj xyuas kev ua haujlwm zoo, lub tuam txhab tau txais tus qauv los txhim kho cov kev tswj xyuas zoo uas twb muaj lawm, los siv, tswj, thiab txuas ntxiv txhim kho kev ua tau zoo.
Lub tuam txhab yeej ib txwm txuas nrog qhov tseem ceeb ntawm cov khoom lag luam zoo thiab kev xav tau ntawm kev lag luam, hauv kev tsim khoom thiab kev ua haujlwm ntawm "thawj-chav ua lag luam, thawj lub koob npe nrov, thawj cov khoom lag luam, kev pabcuam thawj zaug" txoj cai zoo. Txhawm rau tsim kom muaj txiaj ntsig tshiab, nthuav dav kev lag luam thiab pab koj cov khoom sib dua, muaj zog dua, ncaj dua, kev ua tau zoo dua, tus nqi qis dua, Huabond tuam txhab yuav, txhawm rau ua kom ntseeg tau qhov zoo, tus cwj pwm ntawm kev sib koom tes, rau koj muab cov kev pabcuam thawj zaug.
Daim ntawv thov:
1. Rau sab hauv phab ntsa (PE txheej):
Thickness ntau ntawm 10mm txog 20mm (sab saum toj phaj: 1.0mm; hauv qab phaj: 0.5mm/0.6mm/ 0.7mm / 0.8 hli
2. Rau sab nrauv phab ntsa (PVDF txheej):
Thickness ntau ntawm 15mm txog 35mm (sab saum toj phaj: los ntawm 1.0mm; hauv qab phaj: 0.7mm-10mm)
Peb muab panels ua ke nrog installation accessories, kev tsim tswv yim thiab installation system yog muaj los ntawm peb pab neeg.
Kab hlau rhuav phab ntsa, kho kom zoo nkauj sab hauv, cov ntaub ntawv vov tsev, cov khoom siv kho kom zoo nkauj rau kev nqa thiab of elevator, nkoj hull lub tsev thiab nkoj kho kom zoo nkauj, tsheb ciav hlau thiab kev kub ceev subway, kho kom zoo nkauj khoom rau cov khoom kim heev nkoj thiab tsheb thiab lwm yam.
Khoom Parameters
Khoom siv | Aluminium Alloy 1100/3003/5052, thiab lwm yam |
Cell loj | 1/4, 1/3, 3/8, 1/2, 3/4, 4/5, 1 nti |
Regular Size (dav x Length) | 1220 * 2440mm, 4' * 8' |
Max. Loj (dav x Length) | 2200 * 12000 hli |
Ob sab Thickness | {{0}}.6mm, 0.7mm, 0.8mm, 0.9mm, 1mm, thiab lwm yam. |
Tsis tu ncua Thickness | 6mm, 10mm, 15mm, 20mm, 25mm, thiab lwm yam. |
Muaj Thickness | 5mm ~ 200 hli |
Kev kho saum npoo | PE / PVDF roller coated, PE / PVDF / hmoov coated, Mill tiav |
Xim | Txhua xim RAL, ntoo / pob zeb zoo nkauj |
Perforation | Tau customized |
Cov duab | Pav ca, Curving, carved, thiab lwm yam. |
Daim ntawv thov | Kab hlau rhuav phab ntsa, kho kom zoo nkauj sab hauv, cov ntaub ntawv vov tsev, cov khoom siv kho kom zoo nkauj rau nqa thiab nqa, tsheb ciav hlau thiab kev kub ceev subway, cov khoom siv kho kom zoo nkauj rau cov khoom kim heev nkoj thiab tsheb thiab lwm yam. |
Qhov tshwj xeeb loj yog muaj raws li cov neeg siv khoom xav tau.
Lwm yam xim lossis tiav uas tuaj yeem xav txog los ntawm tus neeg siv khoom.
FAQ
Q: Vim li cas cov neeg siv khoom xaiv peb?
A: Peb tsim aluminium cladding vaj huam sib luag tshaj 26 xyoo ua kev paub. Peb muaj cov kws tshaj lij pab neeg ua haujlwm rau cov neeg siv khoom los ntawm kev tsim khoom kom tiav cov khoom, muab kev daws teeb meem zoo dua rau cov neeg siv khoom qhov teeb meem.
Q: Koj lub sijhawm them nyiaj yog dab tsi?
A: Them nyiaj<=10000USD, 100% in advance. Payment >10000USD, 30% T / T ua ntej, tshuav nyiaj li cas ua ntej xa zaub mov.
Q: Koj puas muab cov qauv? Puas yog dawb lossis xav tau tus nqi ntxiv?
A: Yog lawm, peb tuaj yeem muab cov qauv dawb tab sis tsis them tus nqi thauj khoom.
Q: Koj lub sijhawm xa khoom ntev npaum li cas?
A: Feem ntau lub sij hawm yog 18-22 hnub.
