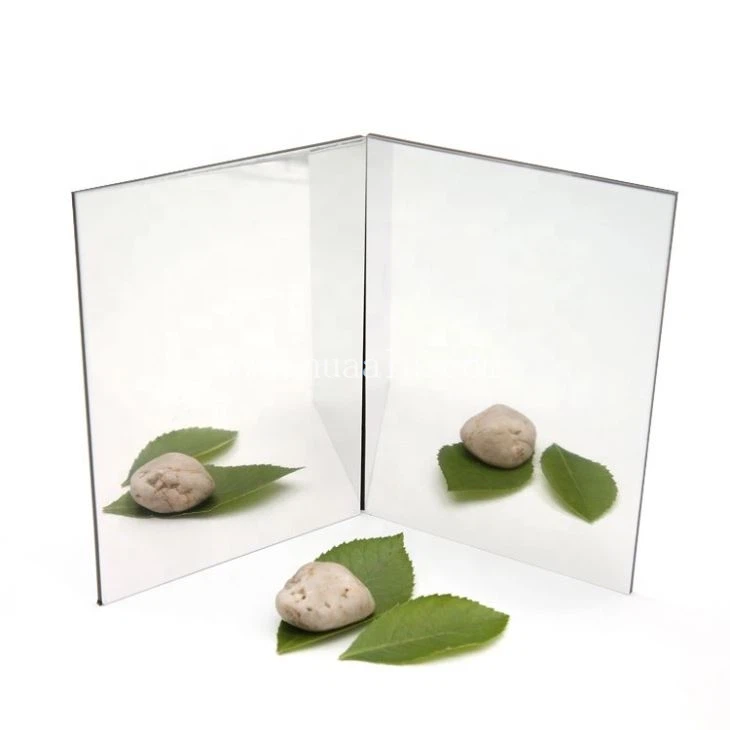

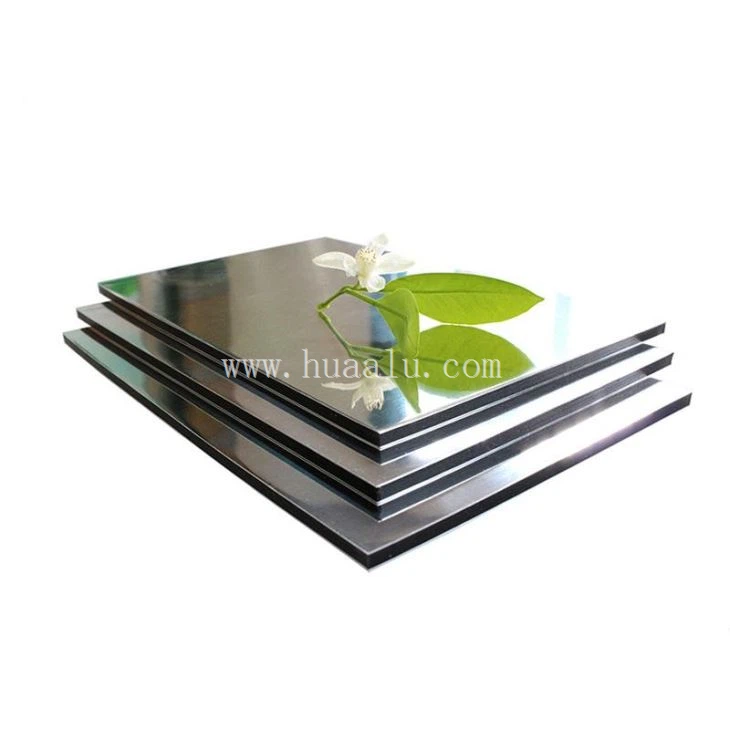

Silver Mirror aluminium composite vaj huam sib luag / Silver Mirror tiav aluminium composite vaj huam sib luag
Txheej txheem cej luam
Cov ntsiab lus ceev
Loj: 1.22x2.44m lossis customized Qhov chaw ntawm Keeb Kwm: Hunan, Suav Hom Lub Npe: HUABOND Tus Qauv Zauv: HTB-A101 Siv: Sab Hauv Tsev, Sab Hauv Tsev Muaj nuj nqi: Fireproof, Fireproof Kev kho deg: Daim iav nyiaj, daim iav kub Khoom npe: Daim iav Faced Aluminium Composite Vaj Huam Sib Luag | Dav: 1220mm, 1250mm, 1500mm Ntev: Raws li cov neeg siv khoom thov, pom zoo 2440mm, 3050mm, 4050mm. Aluminium ntawv thickness: {{0}}.15mm, 0.21mm, 0.30mm, 0.40mm, 0.50mm Vaj huam sib luag thickness: 2mm, 3mm, 4mm, 5mm, 6mm Txheem: 1220 * 2440mm |
Muaj peev xwm muab khoom
Muaj peev xwm muab khoom:
20000 Square Meters / Square Meters ib hnub twg
Ntim & Xa
Ntim Cov Lus Qhia
liab qab packing los yog ntoo packing rau Sparkle lamination zaj duab xis dawb dub liab ACP txhuas composite sparkle siv lead ua txee pob qhov rooj tub rau khoom lub qhov rooj rub lub vaj huam sib luag.
Chaw nres nkoj
Shanghai chaw nres nkoj
Lub Sijhawm Lead:
Quantity (Square Meters) | 1 - 1000 | 1001 - 3000 | 3001 - 5000 | >5000 |
Est. Sijhawm (hnub) | 7 | 10 | 15 | Yuav tsum sib tham |
Golden / nyiaj daim iav 3mm 4mm Aluminium Composite Vaj Huam Sib Luag | ||
Vaj Huam Sib Luag Dav | 1220mm, 1250mm, 1500mm, customized txais | |
Vaj Huam Sib Luag Ntev | Txog li 11500mm, customized txais | |
Vaj Huam Sib Luag Thickness | 2 hli, 3mm, 4mm, 5mm, 6mm | |
Aluminium Thickness | {0}}.07mm txog 0.50mm | |
Txheej | Daim iav nyiaj, PE txheej, PVDF txheej, NANO, Txhuam nto, | |
PE Core | Recycle PE Core, Fireproof PE Core, Unbreakable PE Core | |
Xim | Hlau, Matt, Glossy, Nano, Txhuam, Daim iav, Granite, Ntoo | |
Lub sij hawm xa tuaj | Hauv 18-22 hnub tom qab tau txais qhov tso nyiaj | |
MOQ | 1000 SQM | |
Cov nqe lus them nqi | T / T lossis L / C | |
Ntau Cov Neeg Siv Khoom | OEM, qauv dawb | |
Daim Ntawv Thov Scope
1) Lub tsev sab nrauv ntaub thaiv phab ntsa
2) Kho kom zoo nkauj kho kom zoo nkauj storey-ntxiv rau cov tsev qub
3) Kho kom zoo nkauj ntawm phab ntsa sab hauv, qab nthab, chav dej, chav ua noj thiab balconies
4) Lub khw lub qhov rooj kho kom zoo nkauj
5) Advertising boards, tso saib platforms thiab signboards
6) Phab ntsa thiab qab nthab rau qhov av
7) Cov khoom siv, tsheb thiab cov khoom siv nkoj
Product Description
Txhua Huabond aluminium composite panels ua raws li txoj cai dav dav uas yog tias ob daim ntawv txhuas yog ua ke los yog sib koom ua ke ntawm cov tub ntxhais tuab tuab ua los ntawm polyethylene. Golden Silver Mirror Reflective aluminium composite vaj huam sib luag ua raws tib txoj cai ntawm yuav ua li cas aluminium composite panels raug tsim. Qhov sib txawv tsuas yog tias cov khoom kawg suav nrog txheej txheej ntawm PVDF (Fluorocarbon). Nov yog qee qhov tseem ceeb ntawm PVDF aluminium composite vaj huam sib luag.
Thickness:
Lub thickness nyob ntawm cov hom thiab nyiam tuaj nyob rau hauv ntau yam ntaub ntawv tab sis vim aluminium puas vaj huam sib luag muaj ib txheej ntawm PVDF panels yuav pom tseeb thicker. Feem ntau PVDF aluminium composite panels yog tsim nyob rau hauv 3, 4, 5 thiab 6mm uas muab koj ib tug ntug nyob rau hauv daim ntawv ntawm lub zog thiab durability.
PVDF Txheej:
PVDF txheej yog ib qho tseem ceeb hauv cov khoom thiab cov txheej txheem tsim tsuas yog vim qhov tseeb tias nws ntxiv cov khoom vaj huam sib luag aluminium zoo kawg nkaus. PVDF yog qhov tseem ceeb ntawm kev sib xyaw ntawm ntau cov khoom xws li fluorocarbon resins uas muab cov fluorine enzyme, ester hnyav, xim thiab cawv. Kev sib xyaw ntawm cov khoom no ua rau cov txheej txheem uas ua rau muaj zog thiab ua haujlwm ntau dua.
Cladding:
PVDF aluminium composite panels tau siv dav rau lub hom phiaj ntawm cladding, raws li peb tau pom tias lawv cov tuab nrog rau cov khoom ntawm PVDF yog cov khoom zoo meej rau cladding.
Nta thiab Daim Ntawv Thov:
Yam ntxwv:
a) Torsion zog
● Kev ua haujlwm siab rau siab thiab quab yuam; Kev hloov pauv siab; Tsis muaj kev puas tsuaj rau xim txheej thaum nkhaus; ● Resistant corrosion txawm los ntawm cov xuab zeb cua daj cua dub;
b) Kev ua haujlwm yooj yim & kev teeb tsa
● Yooj yim rau txheej txheem vim nws lub teeb yuag; Superior constructibility ua kom yooj yim txiav, npaj ntug, khoov thiab daim ntawv nrog cov cuab yeej yooj yim;
c) Thermal Resistance
● HUABOND ACP's muaj cov khoom siv hluav taws xob uas tiv thaiv tshav kub kom nkag mus rau cov qauv, uas txhais tau rau hauv kev txuag hluav taws xob;
d) Hluav taws kub tsis kam
● PE yas core phaj yog saws raws li cov nplaim hluav taws kub nyhiab hauv nruab nrab ntawm cov txheej txheej nyuaj-combustible aluminium; Fireproof muaj peev xwm siab tshaj B1 tus qauv;
e) Huab cua Resistance
● PVDF txheej (KYNAR-500) cov ntaub ntawv muab huab cua zoo. Qhov saum npoo yuav tsis raug puas tsuaj raws li kev nyab xeeb; Xim yuav kav ntev dua;
f) Txawm Coat & Ntau Xim
● HUABOND ACP's siv cov cuab yeej ua yeeb yaj kiab siab heev, ua rau kev sib koom ua ke ntawm cov xim thiab vaj huam sib luag muaj zog thiab tsis sib xws; Ntau hom xim tuaj yeem ua tiav koj cov kev xav tau sib txawv;
g) Kev tiv thaiv siab
● Lub tswv yim sib xyaw ua ke ntawm viscoelastic core fused nrog cov khoom siv ruaj khov ua rau muaj kev cuam tshuam siab thiab tawg ua haujlwm; HUABOND ACP muaj zog thiab nruj;
h) Peel zog
● Cov cuab yeej siv siab tshaj plaws yog siv rau hauv HUABOND ACP's uas txhim kho qhov tseem ceeb, tev lub zog, mus rau qhov zoo heev; Planeness ntawm vaj huam sib luag tau zoo heev;
i) Suab Resistance
● Qhov tshwj xeeb uas tsis yog-combustible polyethylene core ntawm HUABOND ACP's muab lub suab txo cov khoom zoo dua li lwm cov ntaub ntawv xws li ntoo thiab hlau;
j) Yooj yim rau tu
● HUABOND ACP's txaus siab rau qhov zoo ntawm kev tu tus kheej; Cov tshuaj ntxuav tes tsis huv thiab dej txaus kom huv si;
Txheej txawv
Aluminium Composite Vaj Huam Sib Luag Series | |
PVDF Series | Qhov saum npoo ntawm PVDF aluminium composite vaj huam sib luag yog Polyvinylidene Fluoride (PVDF, 70 feem pua cov ntsiab lus) nrog huab cua tsis zoo, cuam tshuam tsis kam, UV tsis kam, suab thiab kub tsis kam, muaj yeeb yuj, du thiab zoo nkauj. Nws lub neej yog txog 20 xyoo. Nws yog tsuas yog siv rau sab nrauv kho kom zoo nkauj. |
PE Series | PE ACP yog ib hom tshiab ntsuab composite cov ntaub ntawv uas compounded ntawm ob txheej ntawm txhuas ntawv thiab nontoxic low-density polyethylene (LDPE) los ntawm macromolecule nplaum zaj duab xis ntawm American DuPont tuam txhab los ntawm thermo compression, txheej txheej ntawm aluminium ntawv yog polyester txheej nrog UV tsis kam, Nws lub neej yog li 15 xyoo. Nws yog tsuas yog siv rau sab hauv kho kom zoo nkauj thiab kev tshaj tawm board. |
Daim iav Finish Series | Qhov saum npoo ntawm daim iav tiav ACP yog cov ntawv txhuas uas zoo li daim iav. Sab nraub qaum yog aluminium ntawv nrog anti-corrosion. Daim iav tiav ACP muaj cov yam ntxwv ntawm daim iav nyhuv, lub teeb yuag, nyuaj rau tawg, siab zog, tuaj yeem khoov thiab ua haujlwm yooj yim. Ua tsaug rau cov nta no, daim iav tiav ACP tau nce ntxiv rau kev kho kom zoo nkauj sab hauv, tshwj xeeb tshaj yog hauv qab nthab, txee vaj huam sib luag, khoom siv hauv tsev, rooj tog zaum. |
Nanometer ACP Series | Cov txheej txheej ntawm nanometer ACP yog PVDF txheej, thiab tom qab ntawd ntxiv txheej txheej ntawm tus kheej ntawm PVDF txheej. Cov txheej txheem ntxuav tus kheej tuaj yeem tiv thaiv cov pa phem xws li cov hmoov tshauv thiab decompose cov pa phem hauv huab cua kom ncav cuag tus kheej huv. Nws cov yam ntxwv ntawm stain kuj, nws tus kheej-huv, acid tsis kam, huab cua tsis kam ntawm Nano yog superior rau cov tsoos PVDF ACP. |
Hluav taws kub-resistant Series | Hluav taws kub-resistance ACP yog ib hom ntsuab hluav taws-resistant composite khoom uas yog compounded ntawm ob txheej ntawm txhuas ntawv thiab tshwj xeeb low-density polythylene (LDPE) nrog hluav taws-ua hauj. Lub txheej ntawm nws nto yog PE lossis PVDF txheej. Cov khoom tseem ceeb yog compounded los ntawm hluav taws-resistant MGOH, NAOH thiab PE Polyester, yog li nws muaj qhov zoo ntawm hluav taws kub-tiv taus uas tuaj yeem ncav cuag B1 chav kawm. |
Drawing Finish Series | Kev kos duab tiav ACP yog sib xyaw ntawm daim duab txhuas ntawv, cov ntawv tiv thaiv corrosion aluminium, thiab nontoxic low-density polyethylene (LDPE). Ua tsaug rau kev kho duab kos duab, nws cov tsos zoo nkauj heev. Nws yog dav siv rau kev kho kom zoo nkauj sab hauv, tshwj xeeb tshaj yog hauv qab nthab, txee vaj huam sib luag, khoom siv hauv tsev, rooj tog zaum. |
FAQ
Q: Koj tus MOQ yog dab tsi, Lub Sijhawm Xa Khoom, Warranty, Them Nyiaj, Muaj peev xwm ntau lawm?
A: 1. MOQ (Qhov Tsawg Tshaj Tawm Tsawg): 600 m2 PE txheej xim xim; 1000 m2 PVDF txheej thiab xim tshwj xeeb.
2. Lub Sij Hawm Lub Sij Hawm: tsis pub dhau 18 mus rau 22 hnub tom qab tau txais daim ntawv cog lus thiab cov nyiaj them poob haujlwm tau txais.
3. Warranty: PVDF KY txheej-20 xyoo rau kev siv sab nraud; Polyester (PE) txheej-5 xyoos rau kev siv sab nraud, 10 xyoo rau kev siv sab hauv.
4. Kev Them Nyiaj: 30 feem pua TT ua ntej, 70 feem pua saib daim ntawv BL.
5. Ntau Lawm Muaj Peev Xwm: 20, 000 m2 ib hnub pib ntawm 1220 * 2440mm 3mm thickness.
Q: Koj puas muaj daim ntawv pov thawj xeem?
A: Yog, ruaj khov zoo yog qhov tseem ceeb rau kev koom tes ua lag luam ntev.
Factory tau dhau ISO9001: 2008 QUALITY SYSTEMS; ISO14001: 2004 ENVIRONMENTAL SYSTEMS; OHSAS18001: 2007 HLOOV SYSTEMS; peb cov khoom tau dhau SGS, SGS-FR; A2 FR thiab lwm yam.
Q: Qhov twg koj HUABOND aluminium puas vaj huam sib luag tau xa tawm?
A: Peb lub Hoobkas tau tsim nyob rau hauv 1994; twb tau xa tawm mus rau Tebchaws Meskas, Canada, Mexico, Brazil, Chile, Panama, Europe Market, Australia, New Zealand, Lub Tebchaws Mid-East, Southeast Asia thiab Africa.
Q: Koj puas muab kev pabcuam OEM?
A: Yog, OEM txais. Tsuas yog muab koj lub logo rau peb, peb yuav xa ib co kev tiv thaiv zaj duab xis tsim rau koj xaiv. Thiab 300 USD yuav tsum tau them rau thawj qhov kev txiav txim, uas yuav raug xa rov qab rau hauv 5 lub thawv ntim khoom.
Q: Dab tsi yog qhov muaj vaj huam sib luag loj thiab tuab?
A: 1. Dav: 1000-1575mm; 1220mm, 1250mm, 1500mm 2000mm raug pom zoo.
2. Ntev: txais customized ntev, pom zoo 2440mm, 3050mm, 4050mm, 5000mm.
3. Vaj Huam Sib Luag Thickness: 2mm-16mm; pom 3,4mm.
4. Aluminium thickness: 0 10-0.5mm, xws li 0.21mm, 0.30mm, 0.40mm , 0.50 hli.
Q: Qhov kev txiav txim yam tsawg kawg nkaus yog dab tsi?
A: 600 square meters rau txhuas puas vaj huam sib luag.
Q: Lub sijhawm khoom xa tuaj yog dab tsi?
A: 18-22 hnub tom qab tso nyiaj, tshwj tsis yog cov hnub so rau pej xeem.
Q: Koj tuaj yeem lav qhov zoo li cas?
A: Peb muaj cov txheej txheem xeem zoo, los ntawm cov khoom siv raw mus rau cov khoom tiav, cov ntaub ntawv yuav tsum tau kuaj xyuas thiab kos npe los ntawm QC.
Q: Kuv tuaj yeem tau txais cov lus hais ntev npaum li cas?
A: Cov lus hais tuaj yeem muab tsis pub ntev tshaj 24 teev ntawm qhov xwm txheej uas peb paub tag nrho cov lus qhia ntxaws.
Q: Kuv puas tuaj yeem tau txais tus qauv?
A: Yog, peb muab cov qauv dawb. Tus nqi xa khoom yog them los ntawm cov neeg siv khoom.
Q: Koj puas tuaj yeem muab kev pabcuam OEM?
A: Yog, peb tuaj yeem tsim raws li koj tus kheej lub npe. Logo thiab tsim yuav tsum tau muab los ua kom haum lub npe lag luam.
Q: Kuv puas tuaj yeem yuav cov khoom siv installation los ntawm koj?
A: Yog, peb muab tag nrho cov khoom siv installation. Thov hu rau peb pab neeg muag khoom tshaj lij.
